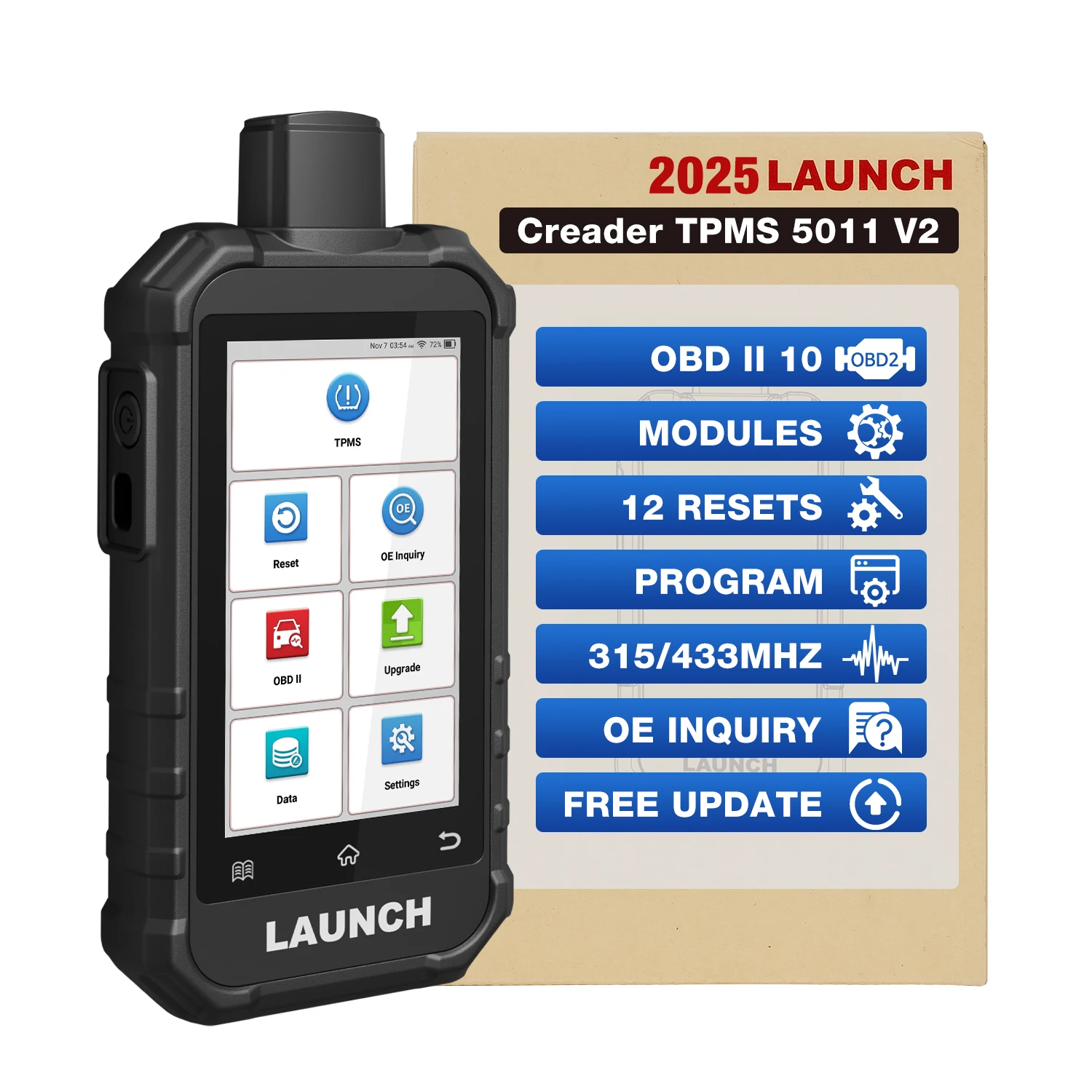

LAUNCH Creader TPMS 5011 V2
The LAUNCH TPMS 5011 V2 is a professional tire-pressure monitoring system diagnostic and sensor service tool designed for automotive workshops, tire centers and mobile technicians.
It combines TPMS sensor activation, sensor-data reading, TPMS diagnosis, OBD relearn and LAUNCH RF sensor programming with full OBD2 engine diagnostics and 12 maintenance functions.
Its Android operating system, 5-inch touchscreen, built-in Wi-Fi and large rechargeable battery provide a modern and easy-to-use workshop experience.

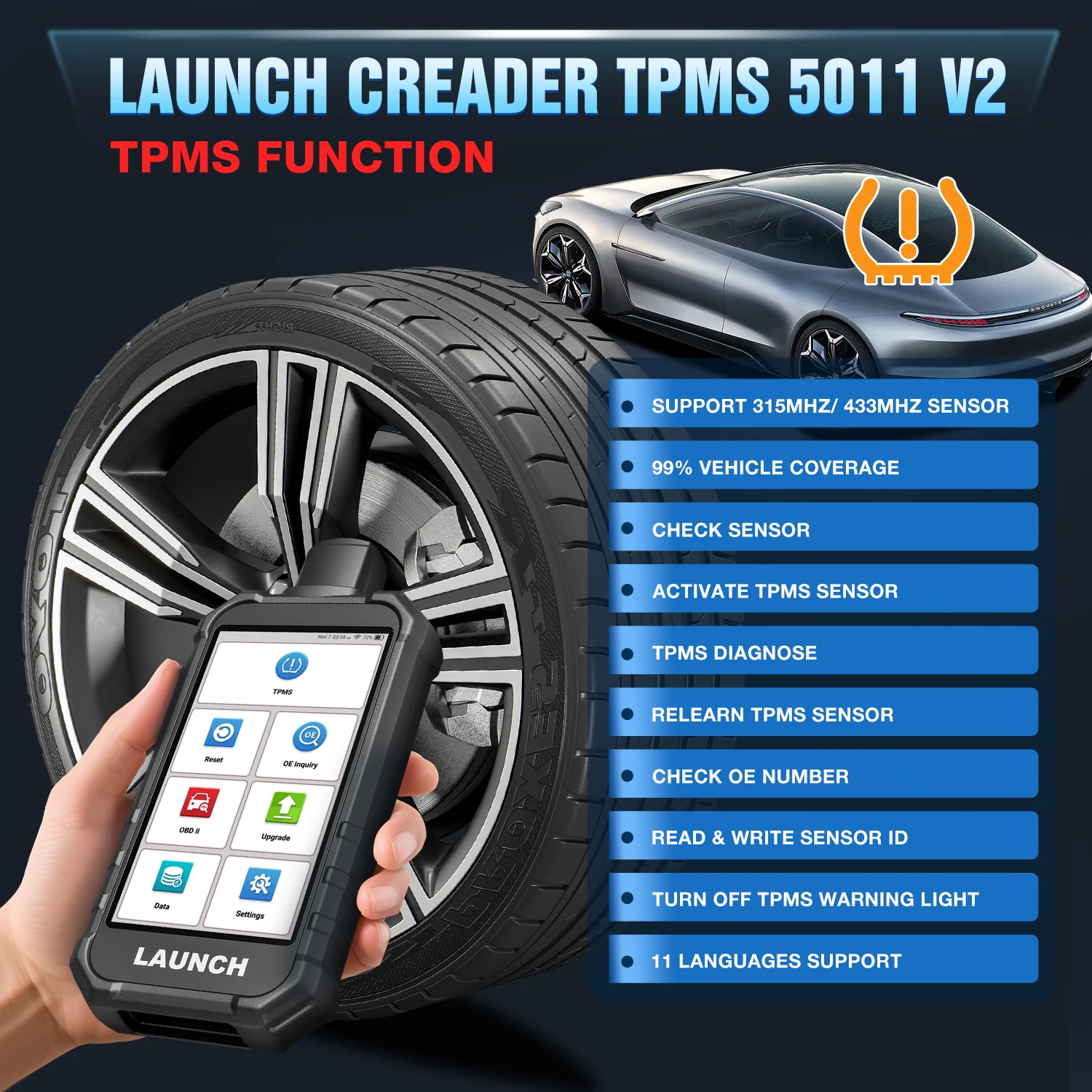

Main TPMS Functions
- Activates supported 315MHz sensors
- Activates supported 433MHz sensors
- Supports selected 2.4GHz TPMS sensors
- Reads sensor identification numbers
- Displays tire pressure in real time
- Displays sensor temperature
- Checks sensor battery condition
- Reads sensor frequency and status
- Diagnoses the vehicle TPMS system
- Reads and clears supported TPMS fault codes
- Performs sensor relearn through the OBD connector
- Displays vehicle-specific relearn instructions
- Reads the TPMS ECU identification
- Programs compatible LAUNCH RF sensors
- Copies supported original sensor IDs
- Supports manual sensor-ID entry
- Provides OE sensor-number search
Function availability depends on the vehicle, TPMS system, sensor type and installed software version.

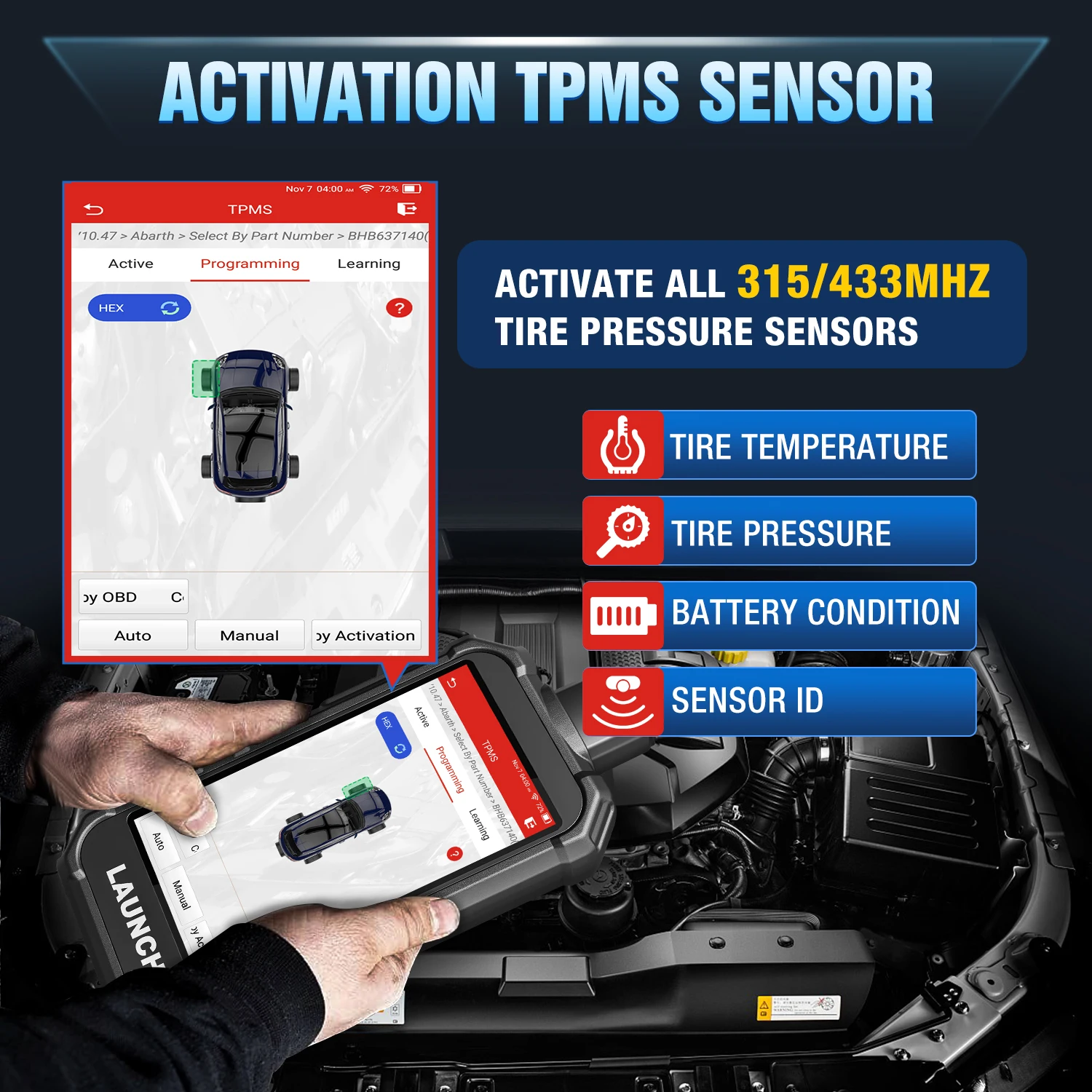

TPMS Sensor Activation
The device can activate and read information from a wide range of supported original and aftermarket TPMS sensors operating at:
- 315MHz
- 433MHz
- Selected 2.4GHz frequencies
Available sensor information may include:
- Sensor ID
- Tire pressure
- Tire temperature
- Sensor frequency
- Battery condition
- Sensor position
Reading a sensor does not necessarily mean that the tool can program that sensor.

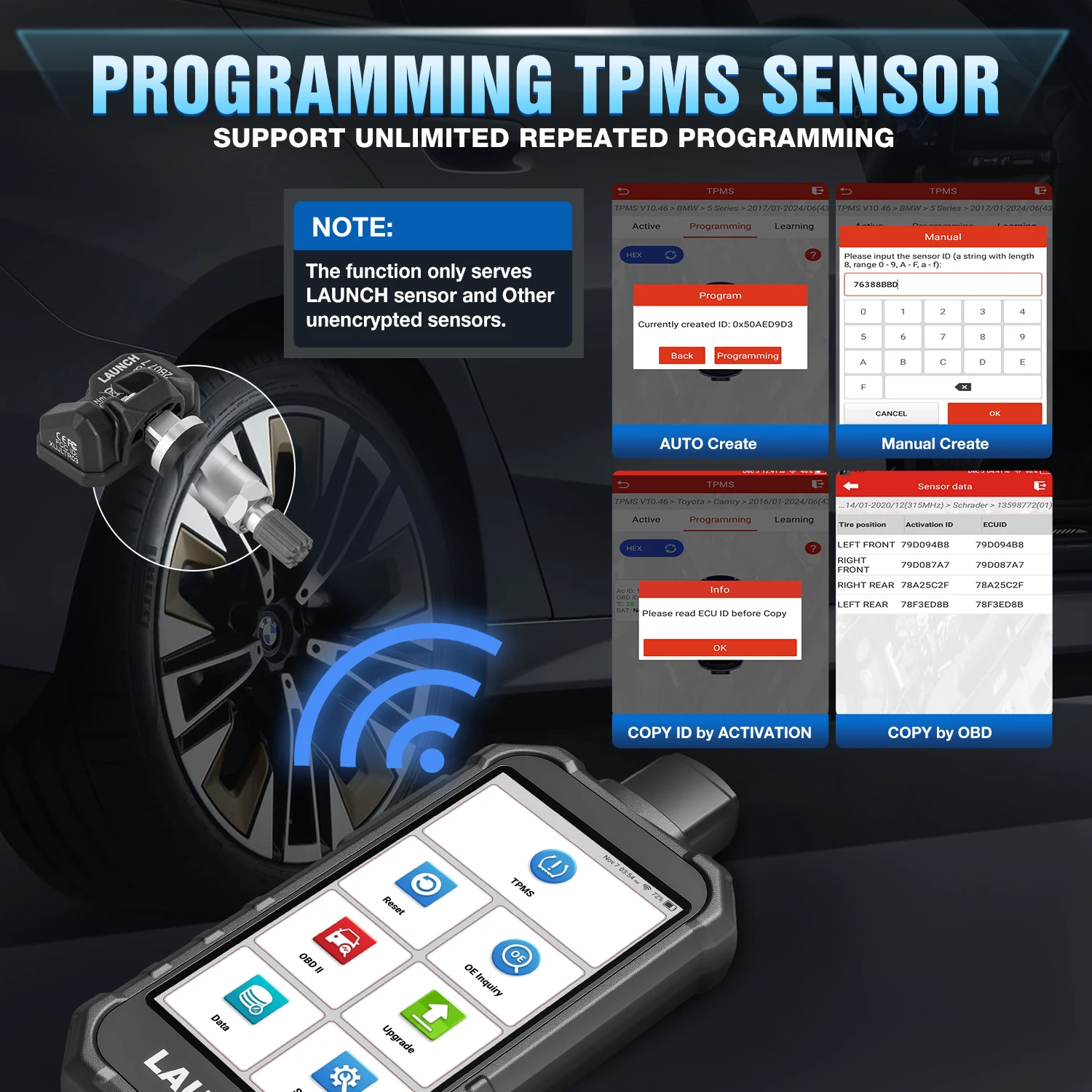

LAUNCH RF Sensor Programming
The TPMS 5011 V2 can program compatible blank LAUNCH RF universal sensors as replacements for supported original sensors.
Available programming methods may include:
- Automatic sensor creation
- Manual sensor-ID entry
- Copying an ID from an activated original sensor
- Copying an ID obtained from the vehicle’s TPMS ECU
Sensor programming is intended for compatible LAUNCH RF sensors. Programming third-party universal sensors is not guaranteed.
LAUNCH RF replacement sensors are not included unless specifically stated in the selected package.
TPMS Relearn
After installing or programming a sensor, the vehicle may require a relearn procedure so that its TPMS control module recognizes the new sensor IDs.
The TPMS 5011 V2 provides:
- Vehicle-specific relearn instructions
- Stationary relearn guidance
- Automatic driving relearn information
- OBD sensor-ID writing on supported vehicles
OBD relearn availability varies according to the vehicle manufacturer, model, year and TPMS system.
TPMS System Diagnosis
Through the vehicle’s diagnostic connector, the tool can perform supported TPMS system functions such as:
- Reading TPMS fault codes
- Clearing TPMS fault codes
- Reading TPMS ECU information
- Viewing supported live data
- Checking stored sensor IDs
- Confirming sensor positions
- Diagnosing warning-light problems
Full OBD2 Diagnostics
The tool also supports standard OBD2 and EOBD engine diagnostic functions, including:
- Reading diagnostic trouble codes
- Clearing supported engine fault codes
- Turning off the Check Engine light after a successful repair
- Viewing live engine data
- Reading freeze-frame information
- Checking I/M readiness status
- Reading vehicle information
- O2-sensor monitoring
- On-board monitor testing
- EVAP-system testing where supported
OBD2 functions apply to compatible vehicles and primarily cover emissions-related engine diagnostics.

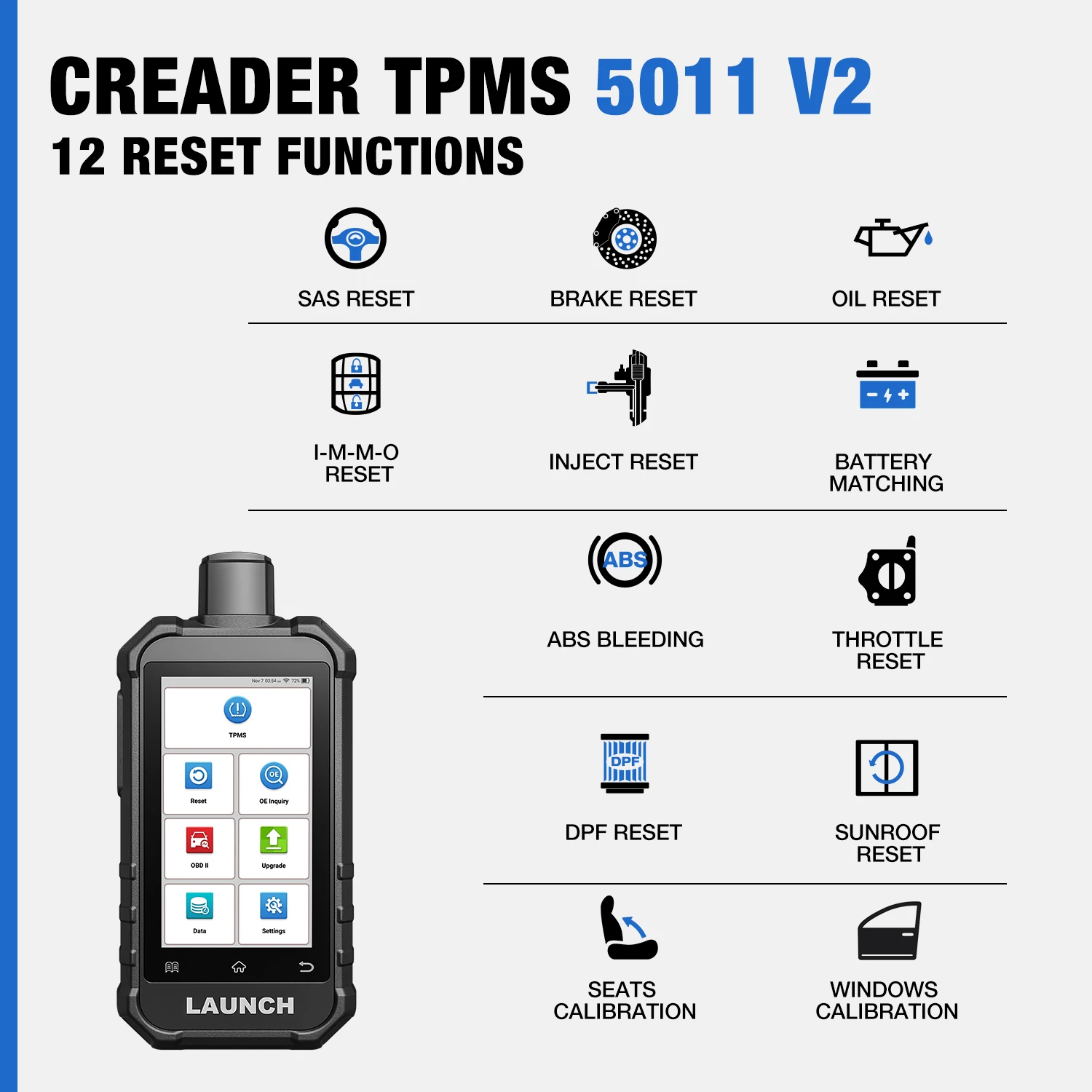

12 Service Functions
The LAUNCH TPMS 5011 V2 includes 12 commonly used maintenance functions:
- Oil service-light reset
- Electronic parking-brake service
- Battery matching and registration
- Steering-angle sensor reset
- ABS brake bleeding
- DPF regeneration
- Electronic throttle adaptation
- Injector coding
- Immobilizer matching
- Seat calibration
- Sunroof initialization
- Door and window calibration
Service-function availability varies by vehicle. The presence of a function in the menu does not guarantee support for every make, model or year.
Hardware Specifications
- Operating system: Android 8.1
- Display: 5-inch touchscreen
- Resolution: 720 × 1280
- Memory and storage: 2GB RAM + 32GB storage
- Battery capacity: 6000mAh
- Wireless connection: 2.4GHz Wi-Fi
- Vehicle input voltage: 9–18V DC
- USB input: 5V
- OBD connector: Standard 16-pin
- Charging and data port: USB Type-C
- CPU frequency: Approximately 1.3GHz
- Approximate dimensions: 211.5 × 99 × 34.5mm
- Approximate weight: Less than 880g
Wi-Fi Software Updates
The built-in Wi-Fi connection allows the device to download available software and vehicle-coverage updates without removing a memory card or connecting it to a computer.
Update availability and duration depend on the device region, serial-number activation and seller policy.
Suitable For
- Professional automotive workshops
- Tire-service centers
- Mobile diagnostic technicians
- TPMS sensor replacement
- Seasonal wheel changes
- TPMS warning-light diagnosis
- General OBD2 engine diagnosis
- Routine vehicle maintenance
Important Compatibility Notes
- Sensor programming is intended primarily for compatible LAUNCH RF sensors.
- Original sensors from other brands may be activated and read but may not be programmable.
- OBD relearn and service functions vary by vehicle.
- Some vehicles use automatic or driving relearn and do not require OBD writing.
- Confirm vehicle and sensor compatibility before purchase.
- The device must be activated and updated before first use.
- TPMS sensors are not included unless clearly stated in the package option.

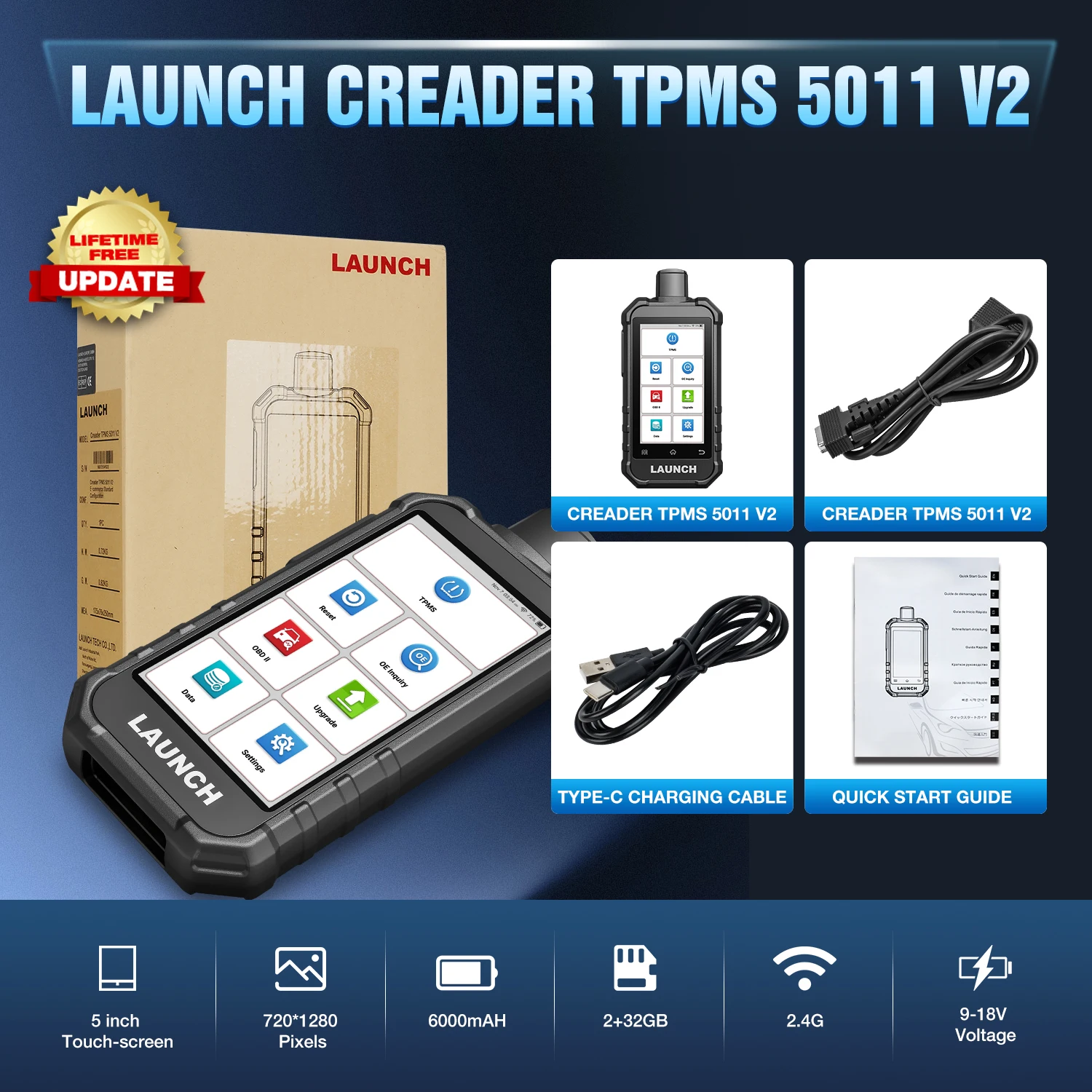

Package Includes
- 1 × LAUNCH Creader TPMS 5011 V2 main unit
- 1 × Main OBD diagnostic cable
- 1 × USB charging and data cable
- 1 × Quick-start guide
Package contents may vary slightly according to the market or production batch.
