XPRO5 Full System Diagnostic Scanner

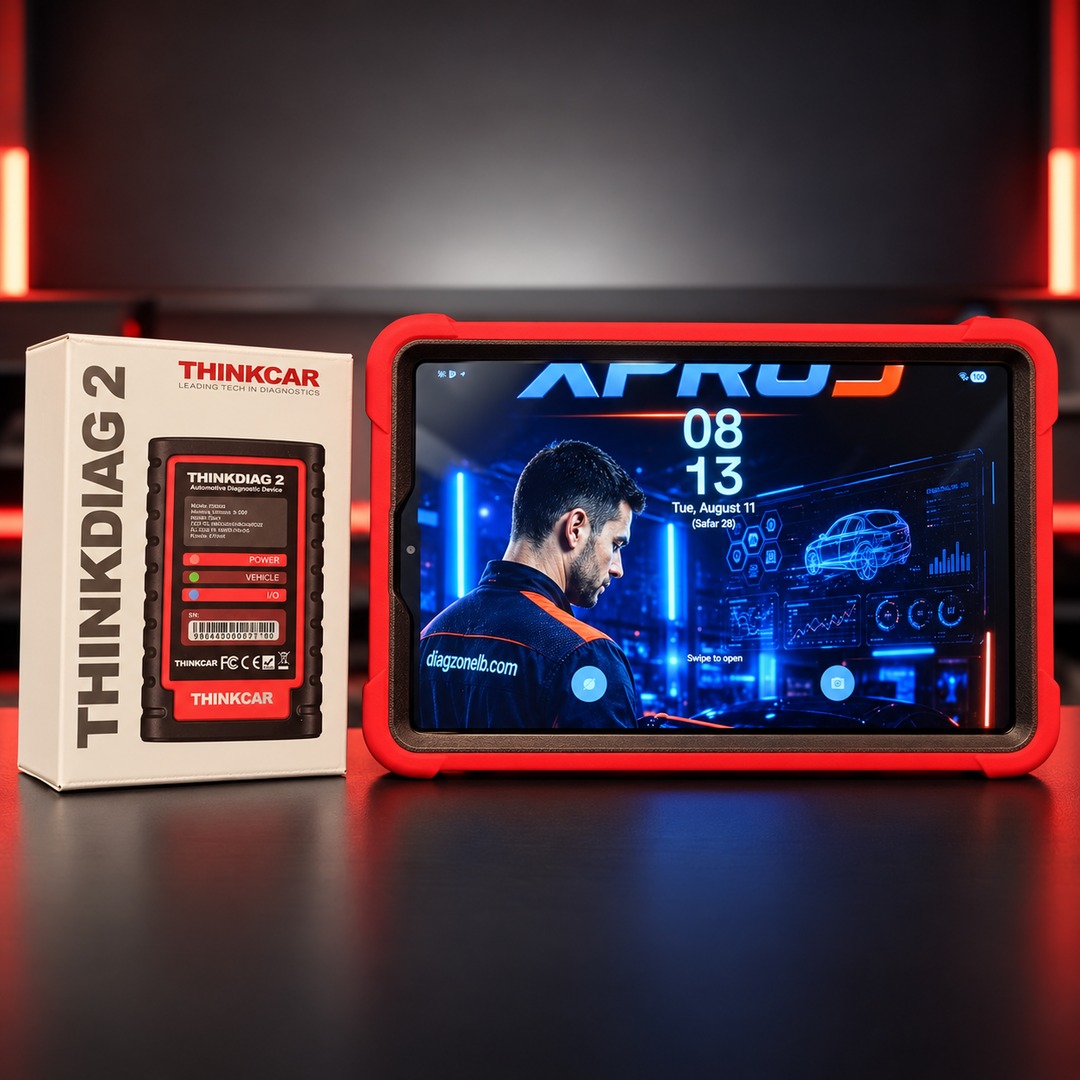

The XPRO5 Diagnostic Scanner is a professional automotive diagnostic package combining the XPRO5 software platform, a dedicated Android tablet and the ThinkDiag 2 Bluetooth diagnostic interface.
It provides comprehensive access to supported vehicle control systems, allowing automotive technicians to read and clear faults, monitor live data, perform active tests, access maintenance functions and complete selected ECU coding and adaptation procedures.
The compact wireless design makes it suitable for professional workshops, mobile mechanics and automotive electricians who require broad vehicle coverage without carrying a large wired diagnostic unit.
Main Features
- Full-system vehicle diagnostics
- Read and clear diagnostic trouble codes
- Display live sensor and control-module data
- Automatic vehicle identification on supported cars
- Complete vehicle health scan
- Bidirectional control and active testing
- Selected ECU coding functions
- Adaptation and component matching
- Advanced service and maintenance functions
- Diagnostic report generation
- Diagnostic history storage
- Bluetooth wireless connection
- CAN-FD communication through ThinkDiag 2
- Wide vehicle brand and model coverage
- Software updates according to the supplied XPRO5 activation
- Dedicated Android diagnostic tablet
Full-System Diagnostics
XPRO5 can communicate with supported electronic control systems throughout the vehicle, including:
- Engine control module
- Automatic transmission
- ABS braking system
- SRS and airbag system
- Body control module
- Electronic parking brake
- Battery-management system
- Tire-pressure monitoring system
- Steering-angle system
- Air-conditioning system
- Instrument cluster
- Immobilizer system
- Door and window modules
- Suspension system
- Lighting system
- Parking-assistance system
- Four-wheel-drive system
- Additional supported vehicle modules
Available systems depend on the vehicle manufacturer, model, production year and installed equipment.
Bidirectional Control and Active Tests
The bidirectional-control function allows the technician to send commands to supported vehicle components and monitor their response.
Depending on vehicle support, active tests may include:
- Cooling-fan activation
- Fuel-pump activation
- Injector testing
- A/C clutch operation
- Window and sunroof operation
- Door-lock actuator testing
- Horn and lighting activation
- Throttle actuation
- Solenoid and relay testing
- Mirror operation
- Additional module-specific tests
Active-test availability varies according to the selected vehicle and control module.
ECU Coding and Adaptation
XPRO5 supports selected ECU coding, adaptation and matching functions. Depending on vehicle coverage, these functions may include:
- Coding replacement control modules
- Component matching
- Resetting adaptive values
- Enabling or disabling supported vehicle options
- Personalizing supported vehicle settings
- Calibration and initialization procedures
- Variant coding on selected vehicles
- Learning procedures after component replacement
ECU coding is not the same as universal ECU firmware programming. Online programming, security access and manufacturer subscriptions may be required for certain vehicles and functions.
Service and Maintenance Functions
Depending on vehicle compatibility, XPRO5 may provide service functions such as:
- Oil-service reset
- Electronic parking-brake reset
- Steering-angle calibration
- Battery registration and reset
- ABS brake bleeding
- Diesel particulate filter regeneration
- Throttle adaptation
- Injector coding
- Transmission adaptation
- Tire-pressure system reset
- Airbag reset
- Suspension calibration
- Sunroof initialization
- Gear learning
- AdBlue reset
- Additional manufacturer-specific maintenance functions
Service-function coverage varies by vehicle. Confirm the required function using the vehicle model, year and VIN before purchase.
ThinkDiag 2 Bluetooth Interface
The included ThinkDiag 2 interface provides wireless communication between the vehicle and the XPRO5 tablet.
Key ThinkDiag 2 features include:
- Bluetooth wireless connectivity
- CAN-FD protocol support
- Standard OBD2 and EOBD communication
- Status indicators for power, vehicle and data communication
- Compact and durable construction
- Connection directly to the vehicle’s 16-pin OBD2 port
CAN-FD support is especially useful for diagnosing many newer vehicle platforms. It does not guarantee coverage of every CAN-FD vehicle.
Live Data and Diagnostic Reports
XPRO5 can display supported real-time vehicle parameters to help technicians analyze faults accurately.
Available functions may include:
- Numerical live-data display
- Data-stream selection
- Graphical parameter display
- Control-module information
- Diagnostic trouble-code descriptions
- Before-and-after repair reports
- Diagnostic history records
- Report sharing or printing, depending on tablet configuration
ADAS Function Notice
The XPRO5 software may display supported ADAS diagnostic or calibration menus. Completing physical ADAS calibration requires the appropriate calibration frame, targets, reflectors and vehicle-specific procedures.
ADAS calibration equipment is not included with this package.
Vehicle Coverage
XPRO5 supports a wide range of American, European and Asian passenger vehicles.
Coverage may include selected models from manufacturers such as:
- BMW and MINI
- Mercedes-Benz
- Volkswagen, Audi, Škoda and SEAT
- Toyota and Lexus
- Nissan and Infiniti
- Honda and Acura
- Ford and Lincoln
- Chevrolet, Cadillac and other GM brands
- Chrysler, Dodge, Jeep and RAM
- Hyundai and Kia
- Renault and Dacia
- Peugeot and Citroën
- Fiat and Alfa Romeo
- Volvo
- Land Rover and Jaguar
- Mazda
- Mitsubishi
- Suzuki
- Subaru
- Additional supported manufacturers
Coverage and available functions vary by vehicle, model year, market and ECU configuration.
Package Contents
The package includes:
- 1 × Android diagnostic tablet
- 1 × Protective tablet case
- 1 × ThinkDiag 2 Bluetooth diagnostic interface
- 1 × XPRO5 software installation and activation
- 1 × Tablet charging cable and adapter, when supplied
- Technical setup and activation support
Tablet model, storage capacity and included accessories may vary according to the available package. Confirm the tablet specifications before ordering if a particular model is required.
Software and Updates
The scanner is supplied with installed XPRO5 diagnostic software and activation according to the purchased package.
Software-update terms, activation duration and supported vehicle packages must be confirmed at the time of purchase. An internet connection may be required for login, activation, software downloads and selected diagnostic functions.
Compatibility Notice
Not every function is available on every vehicle. Compatibility depends on:
- Vehicle manufacturer
- Vehicle model
- Production year
- Vehicle market
- Installed control module
- Communication protocol
- XPRO5 software coverage
- Internet and security-access requirements
Send the vehicle VIN and the required function before ordering if compatibility with a specific vehicle or procedure is essential.
Important Information
This tool is intended for professional automotive diagnosis and repair. Maintain stable vehicle-battery voltage while performing coding, adaptations or advanced service procedures.
Always save diagnostic reports and original module settings before making changes. Incorrect coding or interrupted communication may cause control-module errors.
