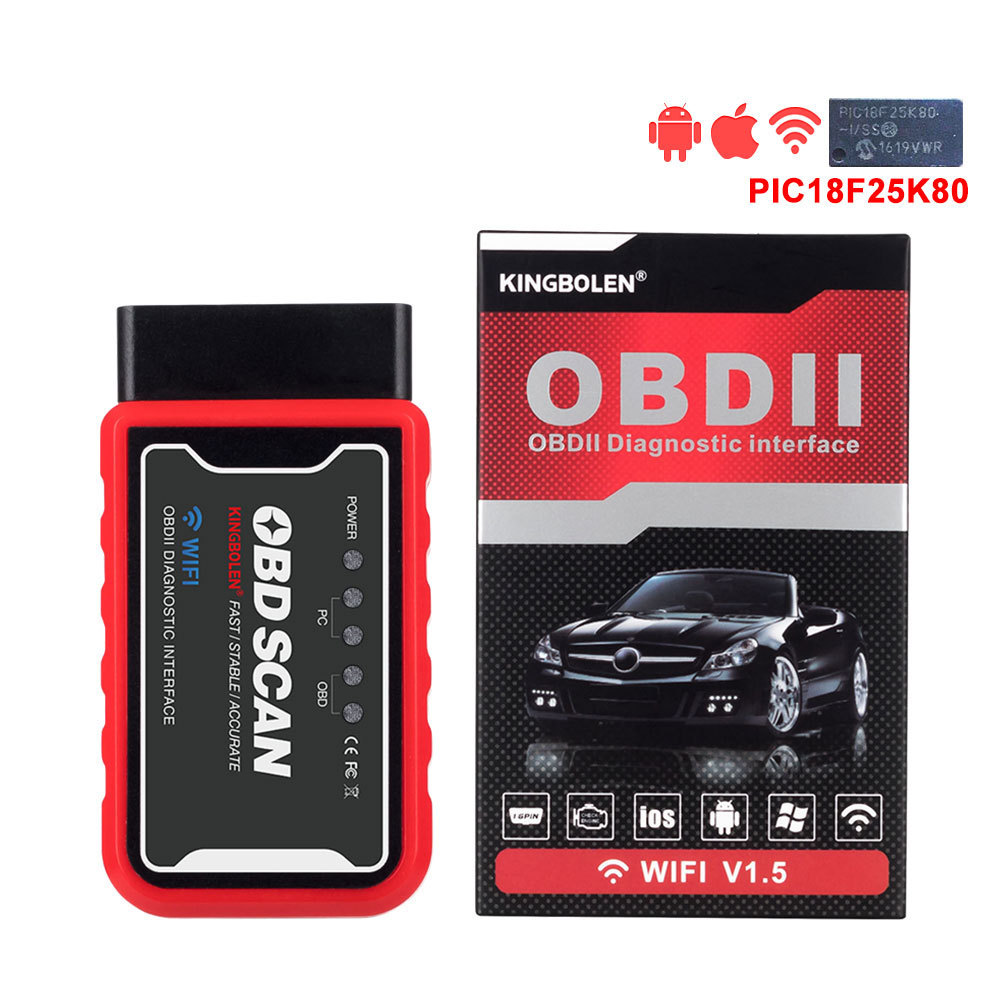

KINGBOLEN ELM327 V1.5 WiFi OBD2 Scanner
The KINGBOLEN ELM327 V1.5 WiFi is a compact OBD2 diagnostic interface designed for reading engine fault codes and viewing live vehicle data through a compatible smartphone, tablet, or computer application.

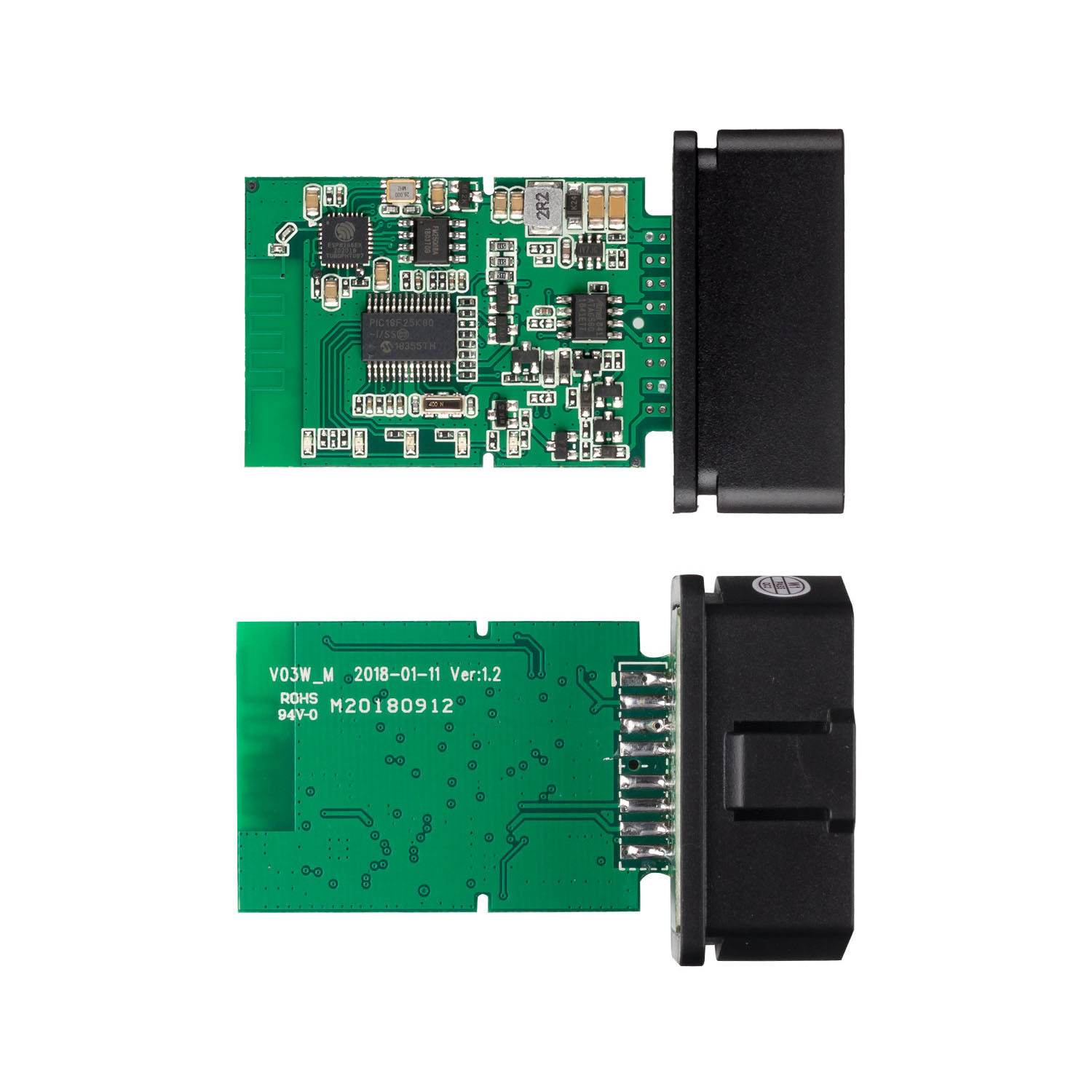

The adapter uses a PIC18F25K80 chip and communicates wirelessly through WiFi. It is compatible with iOS, Android, and supported Windows devices. Simply connect the adapter to the vehicle’s 16-pin OBD2 port, join its WiFi network, and open a compatible diagnostic application.
Main Features
• WiFi connection for iOS, Android, and compatible computers
• PIC18F25K80-based hardware
• Reads generic and supported manufacturer-specific engine fault codes
• Clears supported diagnostic trouble codes
• Turns off the Check Engine or MIL light after a successful repair
• Displays supported live engine data

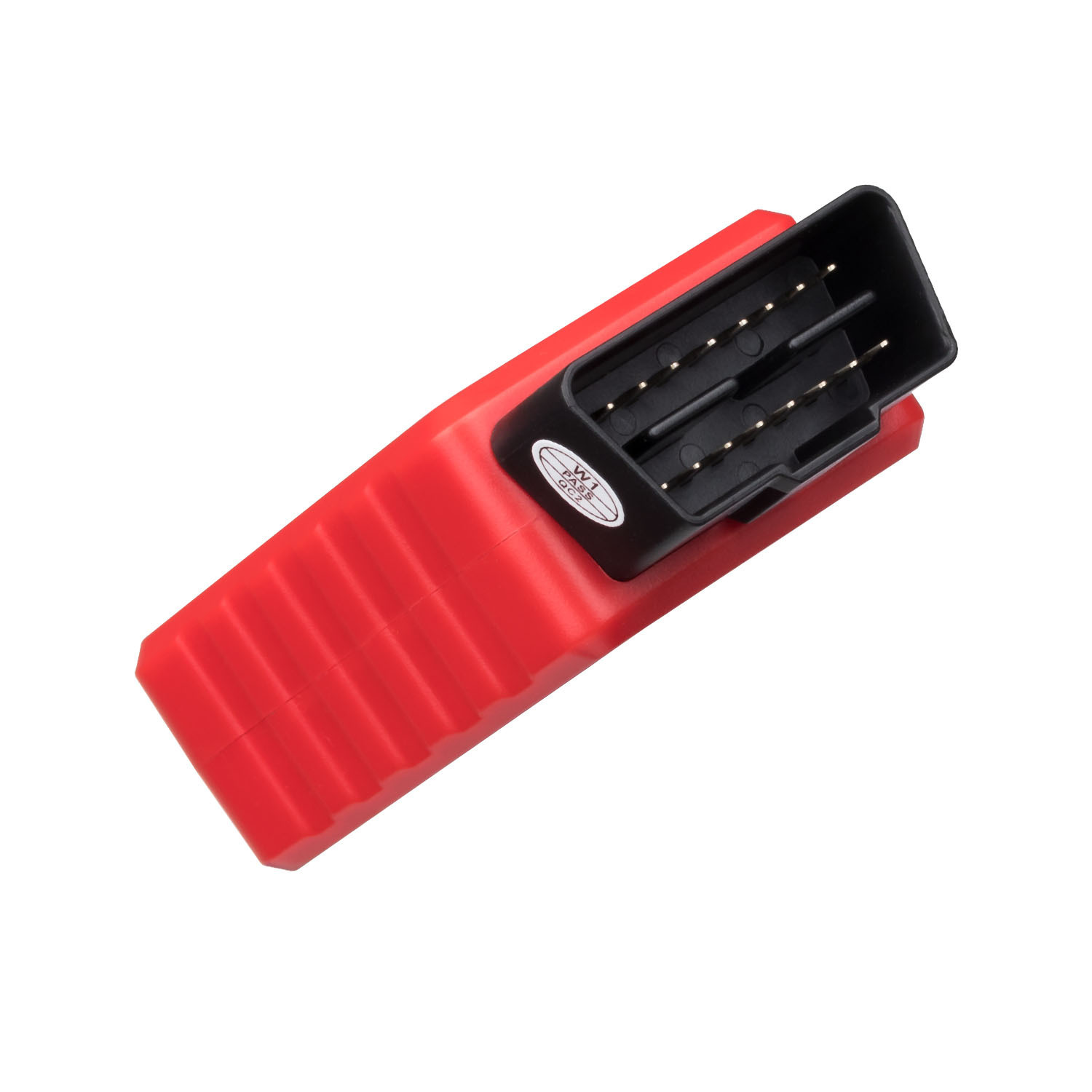

• Compact design that connects directly to the OBD2 diagnostic port
• Works with many ELM327-compatible diagnostic applications
Supported Live Data
Available parameters depend on the vehicle and the application being used. Supported data may include:
• Engine speed – RPM
• Vehicle speed
• Engine coolant temperature
• Calculated engine load
• Throttle position
• Fuel pressure
• Fuel consumption data
• Intake manifold pressure
• Intake air temperature
• Ignition timing advance
• Mass air flow rate
• Fuel level
• Short-term and long-term fuel trim
• Barometric pressure
• EVAP system vapor pressure
Supported OBD2 Protocols
• ISO 9141-2
• ISO 14230-4 KWP2000
• ISO 15765-4 CAN
• ISO 11898 CAN
• SAE J1850 PWM and VPW, where supported
• SAE J1939, depending on the vehicle and application
Vehicle Compatibility
The scanner is intended for OBD2/EOBD-compliant vehicles equipped with a standard 16-pin diagnostic connector.
• Most United States vehicles from 1996 onward
• Many European petrol vehicles from approximately 2001 onward
• Many European diesel vehicles from approximately 2004 onward
• Other OBD2/EOBD-compliant vehicles, depending on regional regulations
Compatibility depends on the vehicle’s market, production year, and implemented OBD2 protocol. Before purchasing, check the vehicle manual or confirm that the vehicle supports standard OBD2 engine diagnostics.
Compatible Applications
The adapter works with compatible third-party ELM327 applications. Examples may include Car Scanner ELM OBD2, OBD Fusion, Torque, and other applications that support WiFi ELM327 adapters.
Application availability, pricing, and supported functions vary according to the operating system and software developer.
How to Use
- Switch off the vehicle ignition.
- Connect the adapter to the vehicle’s 16-pin OBD2 port.
- Turn the ignition to the ON position or start the engine when required.
- Open the WiFi settings on your phone, tablet, or computer.
- Connect to the WiFi network created by the adapter.
- Open a compatible diagnostic application.
- Select WiFi as the connection type and connect to the vehicle.
Important Notes
• This adapter is primarily intended for standard OBD2 engine and emissions diagnostics.
• It is not an all-system professional diagnostic scanner.
• It does not guarantee access to ABS, airbag, transmission, body, or immobilizer systems.
• ECU coding, key programming, bidirectional control, and advanced service resets are not standard ELM327 functions.
• Available functions and live parameters depend on the vehicle and diagnostic application.
• Do not leave the adapter connected for extended periods while the vehicle is parked because it may consume battery power.
Package Includes

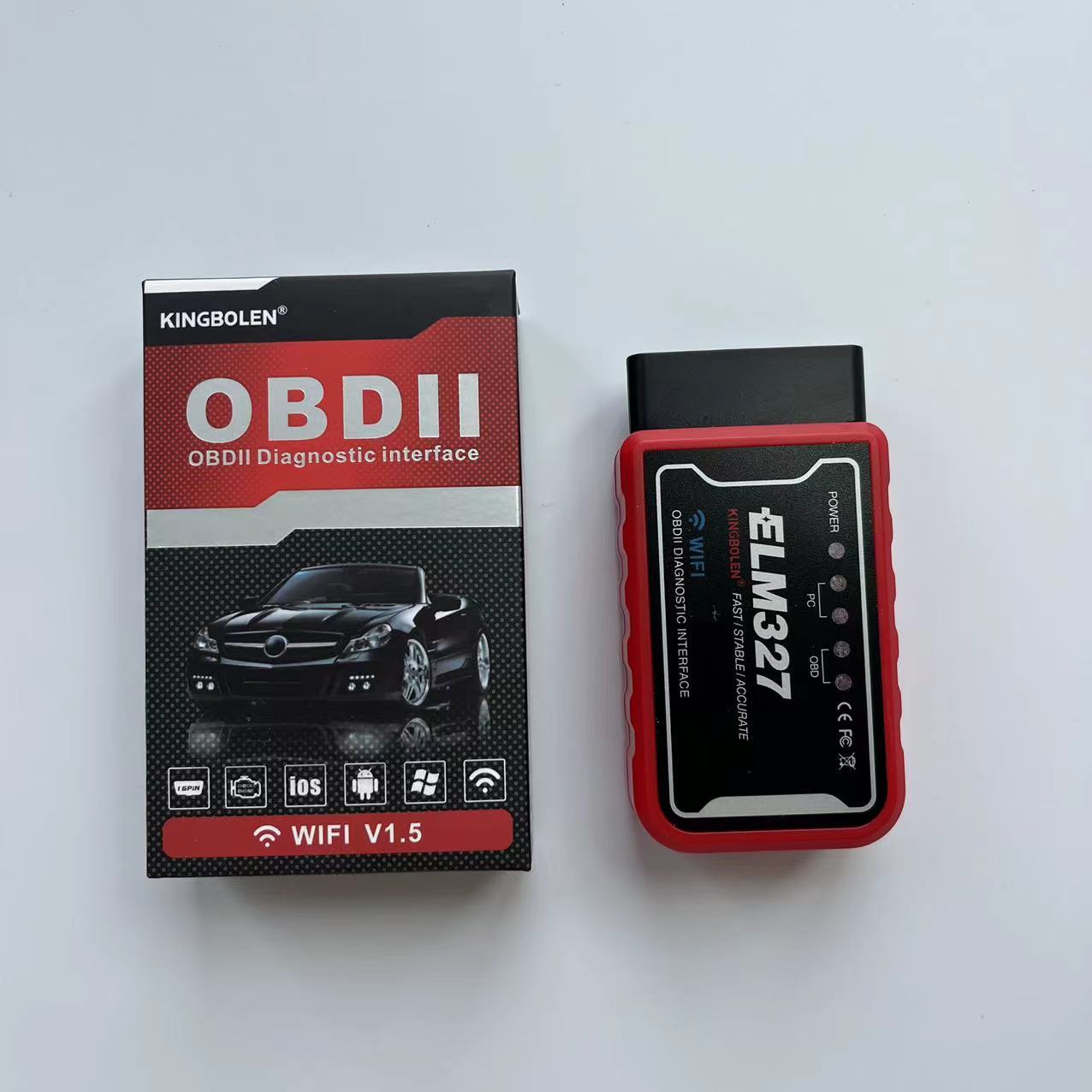

• 1 × KINGBOLEN ELM327 V1.5 WiFi OBD2 Adapter
• 1 × Retail Package
Diagnostic applications may need to be downloaded or purchased separately.
