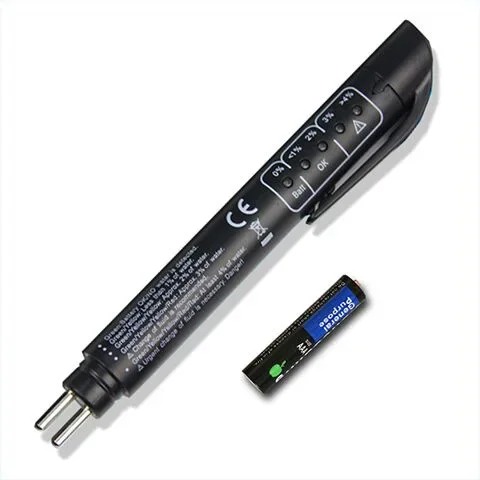

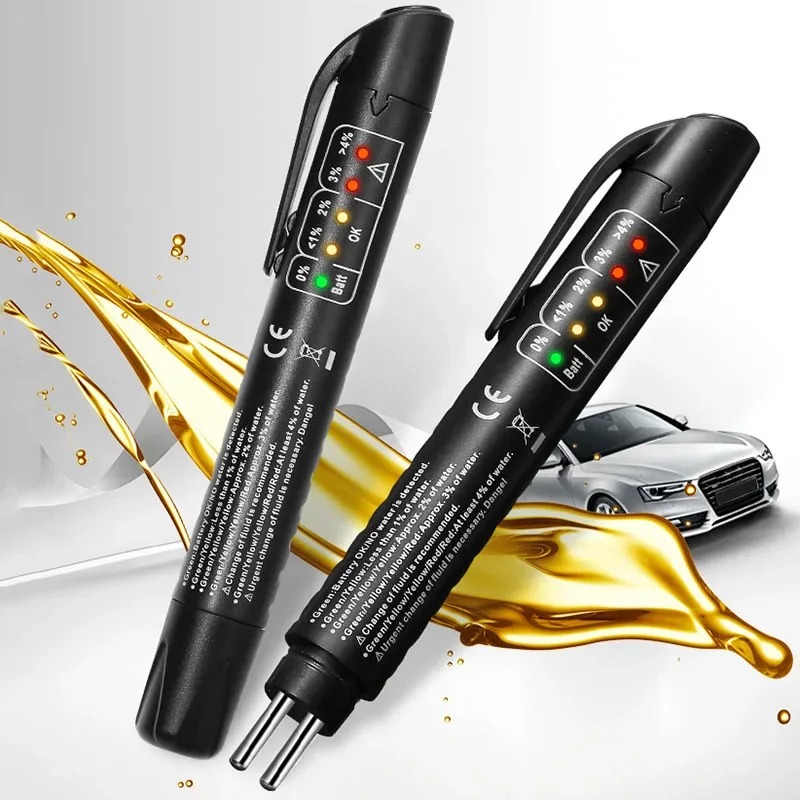

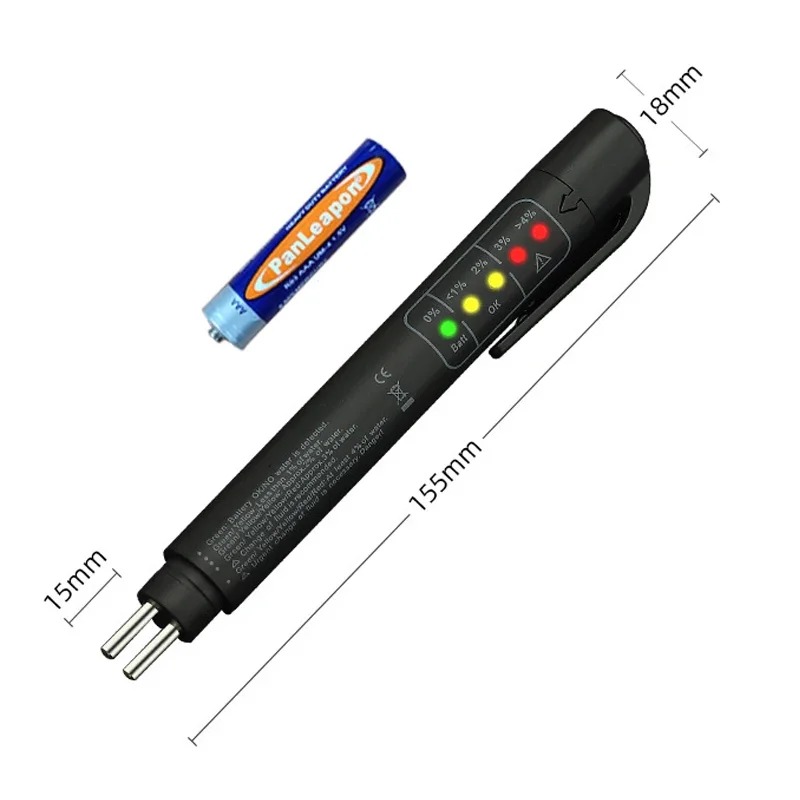

Brake Fluid Tester Pen with LED Moisture Indicator
The Brake Fluid Tester Pen is a compact inspection tool designed to provide a quick indication of moisture contamination in compatible glycol-based automotive brake fluid.
Brake fluid absorbs moisture over time, which can reduce its boiling point and affect braking performance under demanding conditions. This tester uses multiple colored LEDs to indicate the estimated water-content level, helping technicians and vehicle owners decide whether further inspection or fluid replacement is required.
Main Features
- Quick brake-fluid moisture inspection
- Five colored LED indicators
- Displays levels from 0% to more than 4%
- Simple one-button operation
- Compact pen-shaped design
- Convenient pocket clip
- Protective cap for the testing probes
- Suitable for workshops and vehicle inspections
- Helps support preventive brake-system maintenance
- No diagnostic scanner or computer required

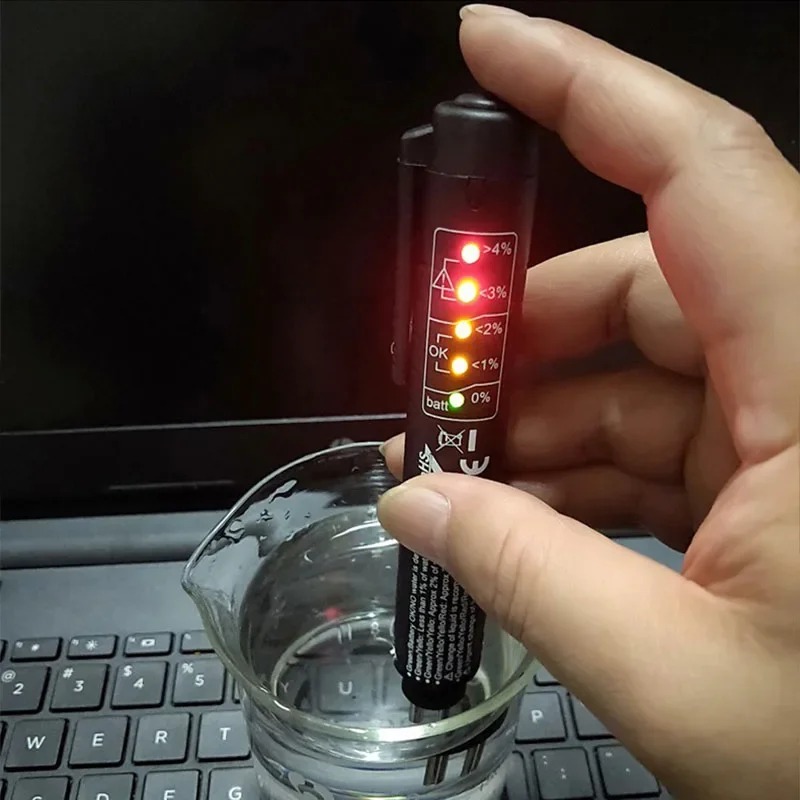

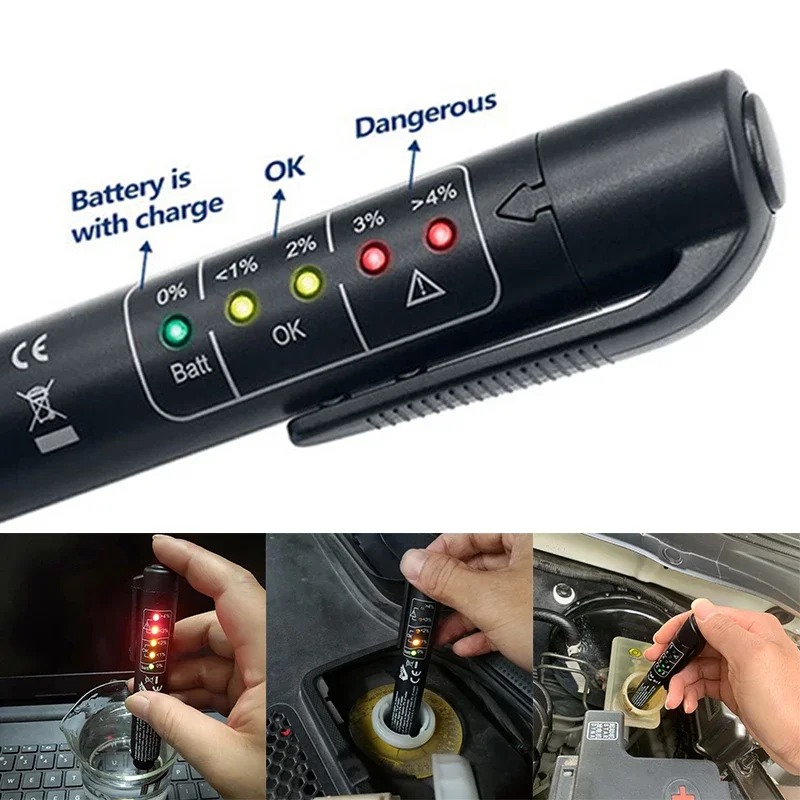

LED Indicator Guide
Green Battery LED
- Confirms that the tester has sufficient battery power.
0% LED
- Indicates very low detected moisture content.
Less Than 1% LED
- Indicates that the brake fluid is generally in good condition.
2% LED
- Indicates moderate moisture content.
- The fluid should be monitored and checked against the vehicle manufacturer’s service recommendations.
3% LED
- Indicates elevated moisture content.
- Brake-fluid replacement should be considered.
More Than 4% LED
- Indicates excessive moisture contamination.
- The brake fluid should be replaced as soon as possible.
The LED readings are approximate screening results and may vary according to fluid type, contamination, temperature and tester condition.

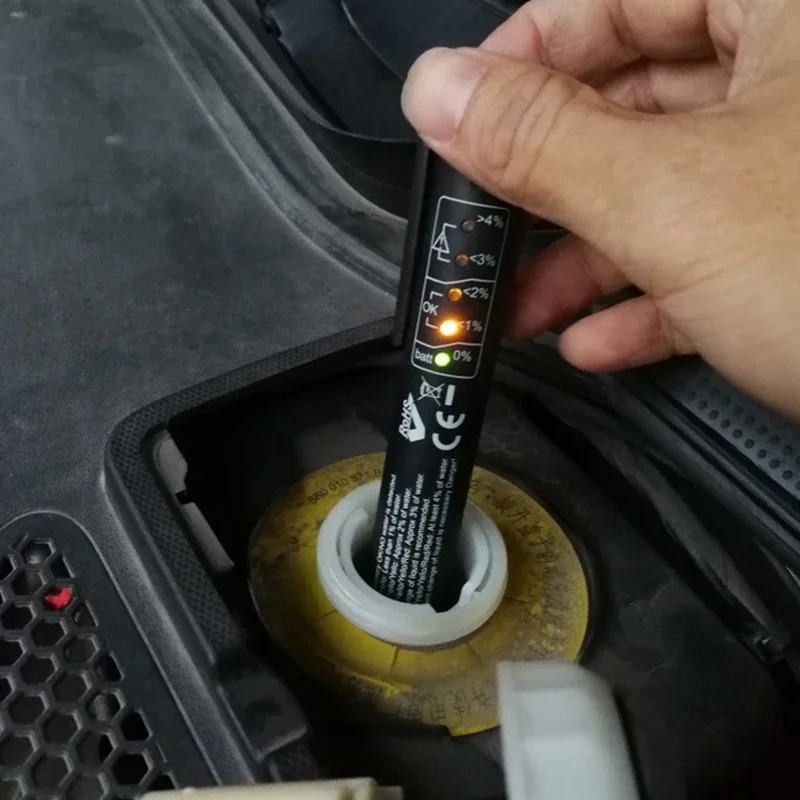

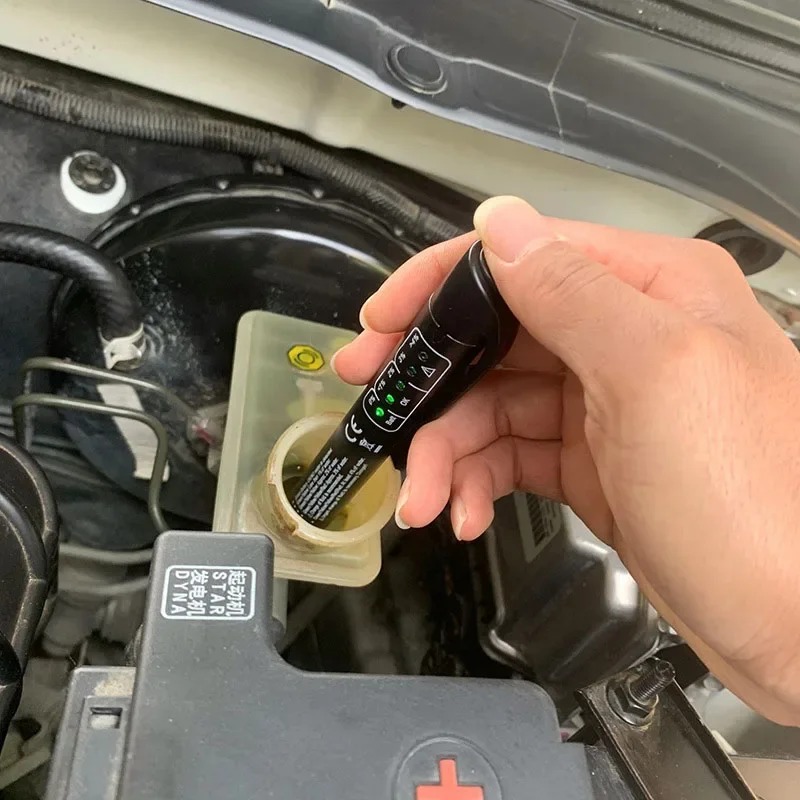

How to Use
- Open the vehicle’s brake-fluid reservoir carefully.
- Remove the protective cap from the tester.
- Press the tester button and confirm that the battery LED illuminates.
- Insert only the metal probes into the brake fluid.
- Wait briefly for the LED result.
- Read the indicated moisture level.
- Remove the tester and wipe the probes with a clean, dry cloth.
- Reinstall the protective cap after use.
Compatible Brake Fluid
Designed primarily for commonly used glycol-based automotive brake fluids, including:
- DOT 3 brake fluid
- DOT 4 brake fluid
Compatibility with DOT 5.1 depends on the tester’s calibration and should be confirmed before use.
Not Compatible With
- DOT 5 silicone-based brake fluid
- Engine oil
- Transmission fluid
- Power-steering fluid
- Coolant or antifreeze
- Fuel or other automotive liquids
Applications
- Routine brake-fluid inspection
- Used-car inspection
- Automotive workshop maintenance
- Preventive brake-system servicing
- Checking fluid before replacement
- Comparing brake-fluid condition during servicing
Important Safety Information
- Perform the test with the vehicle switched off and parked safely.
- Prevent dirt or moisture from entering the brake-fluid reservoir.
- Do not allow brake fluid to contact painted vehicle surfaces.
- Insert only the metal testing probes into the fluid.
- Do not immerse the entire tester.
- Clean and dry the probes immediately after every test.
- Keep the tester away from children.
- Replace the battery if the battery indicator is weak or does not illuminate.
Important Notice
This tester provides an approximate moisture indication and is not a laboratory instrument. The result should be considered together with the vehicle manufacturer’s maintenance schedule, brake-fluid age and professional inspection.
A low moisture reading does not confirm that the brake fluid is free from every type of contamination or degradation.
Package Includes
- 1 × Brake Fluid Tester Pen
Battery inclusion may vary according to the supplied package.
