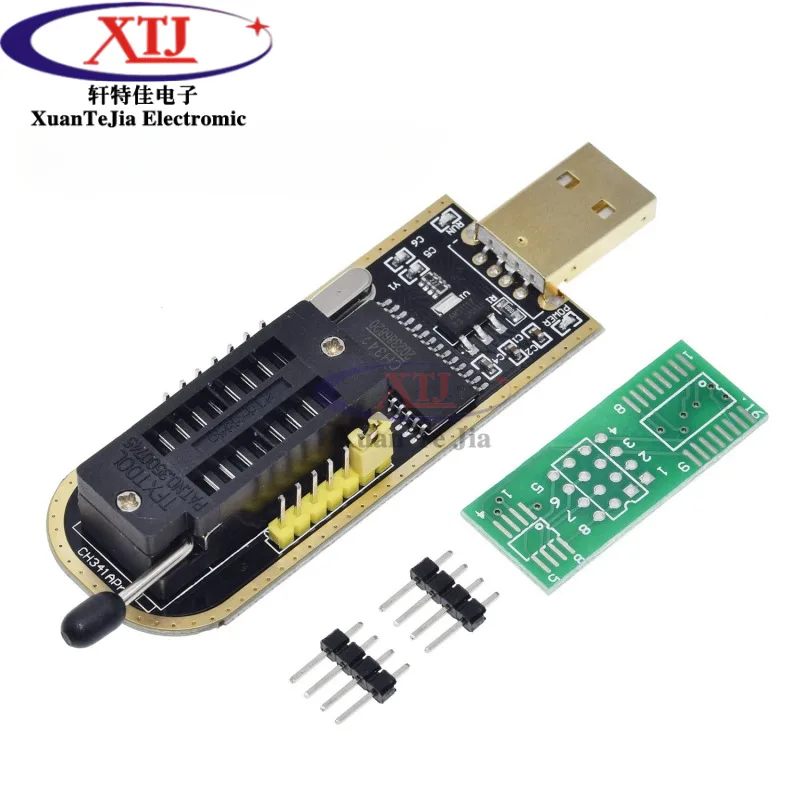

Gold CH341A USB EEPROM and BIOS Programmer Kit
The Gold CH341A BIOS Programmer is a compact USB programming tool designed for reading and writing supported 24-series EEPROM and 25-series SPI Flash memory chips.
It is suitable for BIOS recovery, router firmware repair, LCD and television board servicing, motherboard repair and other electronic maintenance applications.
The included SOIC8 test clip allows technicians to attempt in-circuit access to supported chips without immediately removing them from the circuit board. The supplied 1.8V adapter supports compatible low-voltage Flash-memory chips.
Main Features
- Based on the CH341A USB interface chip
- Supports selected 24-series I²C EEPROM chips
- Supports selected 25-series SPI Flash chips
- Reads, erases, writes and verifies supported memory
- USB connection without a separate programmer power supply
- ZIF socket for convenient chip insertion
- SOIC8 test clip for supported in-circuit operations
- Includes a dedicated 1.8V voltage adapter
- Suitable for BIOS and firmware recovery
- Compact design for workshop and field repair
Supported Memory Families
Depending on the selected software and chip database, the programmer may support devices from families such as:
- 24C01
- 24C02
- 24C04
- 24C08
- 24C16
- 24C32
- 24C64
- 24C128
- 24C256
- 24C512
- 25-series SPI Flash
- Selected W25Q-series memory
- Selected MX25-series memory
- Selected GD25-series memory
- Selected EN25-series memory
- Other compatible EEPROM and SPI Flash chips
Support must be confirmed using the complete manufacturer name, chip reference, operating voltage and package type.
Typical Applications
The CH341A programmer can be used for supported memory chips found in:
- Desktop computer motherboards
- Laptop motherboards
- Routers and network equipment
- LCD and LED television boards
- Computer graphics cards
- Embedded electronic systems
- Industrial control boards
- Consumer electronic devices
- Automotive electronic modules containing supported memories
The programmer does not support every chip or automotive control unit. It programs only compatible memory devices listed by the selected software.

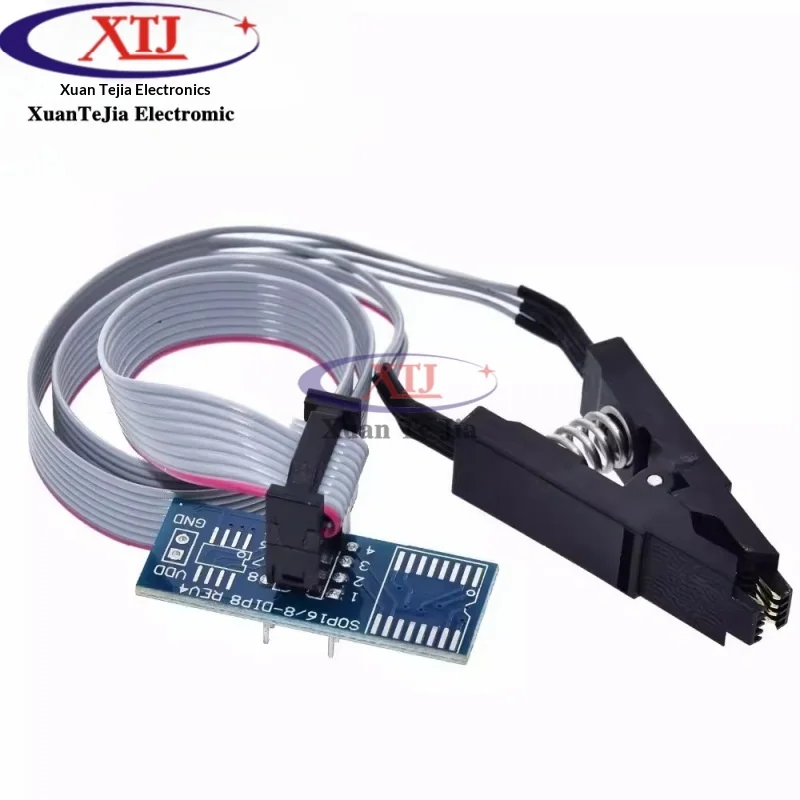

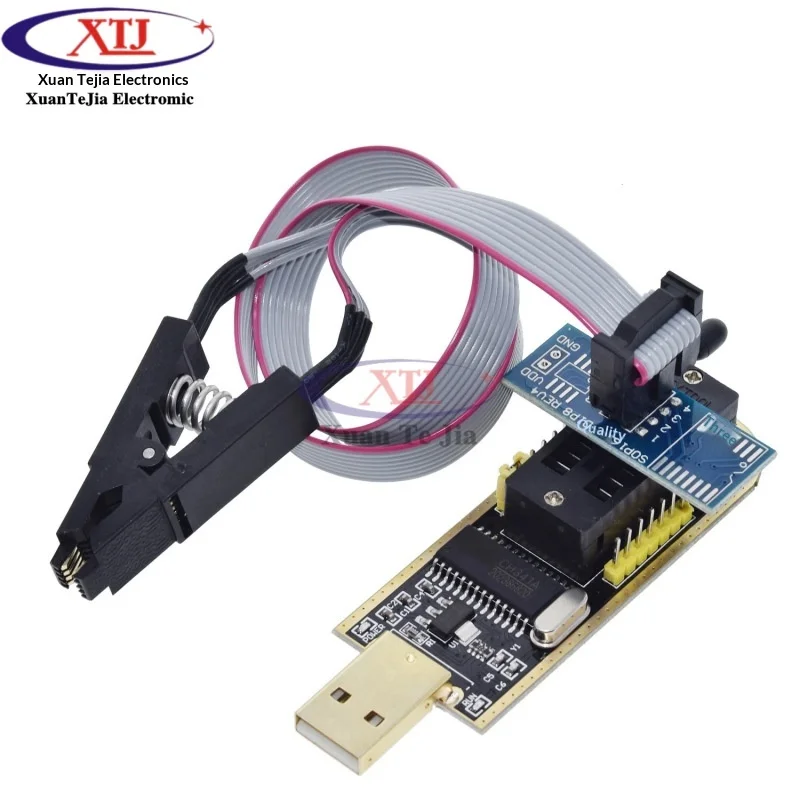

SOIC8 Test Clip
The included SOIC8 clip can connect to a supported eight-pin chip while it remains soldered to the circuit board.
In-circuit programming is not guaranteed on every board. Other components connected to the same communication lines may prevent chip detection or reliable reading. In such cases, the chip may need to be removed and programmed using the socket adapter.
The colored or marked wire indicates Pin 1. Always confirm the chip orientation before connecting the programmer.
1.8V Adapter
Some modern BIOS and SPI Flash memories operate at 1.8V instead of 3.3V. The included 1.8V adapter reduces the programming voltage for compatible low-voltage chips.
Never connect a 1.8V memory chip directly to the standard programmer output. Applying an incorrect voltage may permanently damage the memory chip.
Always check the chip datasheet before programming.
Programming Functions
Available functions may include:
- Chip identification
- Blank check
- Reading memory contents
- Saving a backup file
- Erasing supported chips
- Writing firmware or BIOS files
- Verifying written data
- Comparing files with chip contents
Available operations depend on the chip and programming software.
Important Usage Notes
- Disconnect the target device from all power sources before attaching the test clip.
- Remove the battery and charger from laptops when possible.
- Confirm Pin 1 orientation before every connection.
- Verify whether the memory operates at 1.8V, 3.3V or another voltage.
- Create and save at least two identical backup reads before erasing a chip.
- Confirm that the backup file is not empty or filled entirely with FF or 00 values.
- Do not write an unverified firmware file to the chip.
- Never force a chip or adapter into the ZIF socket.
- In-circuit programming may fail because of other components on the board.

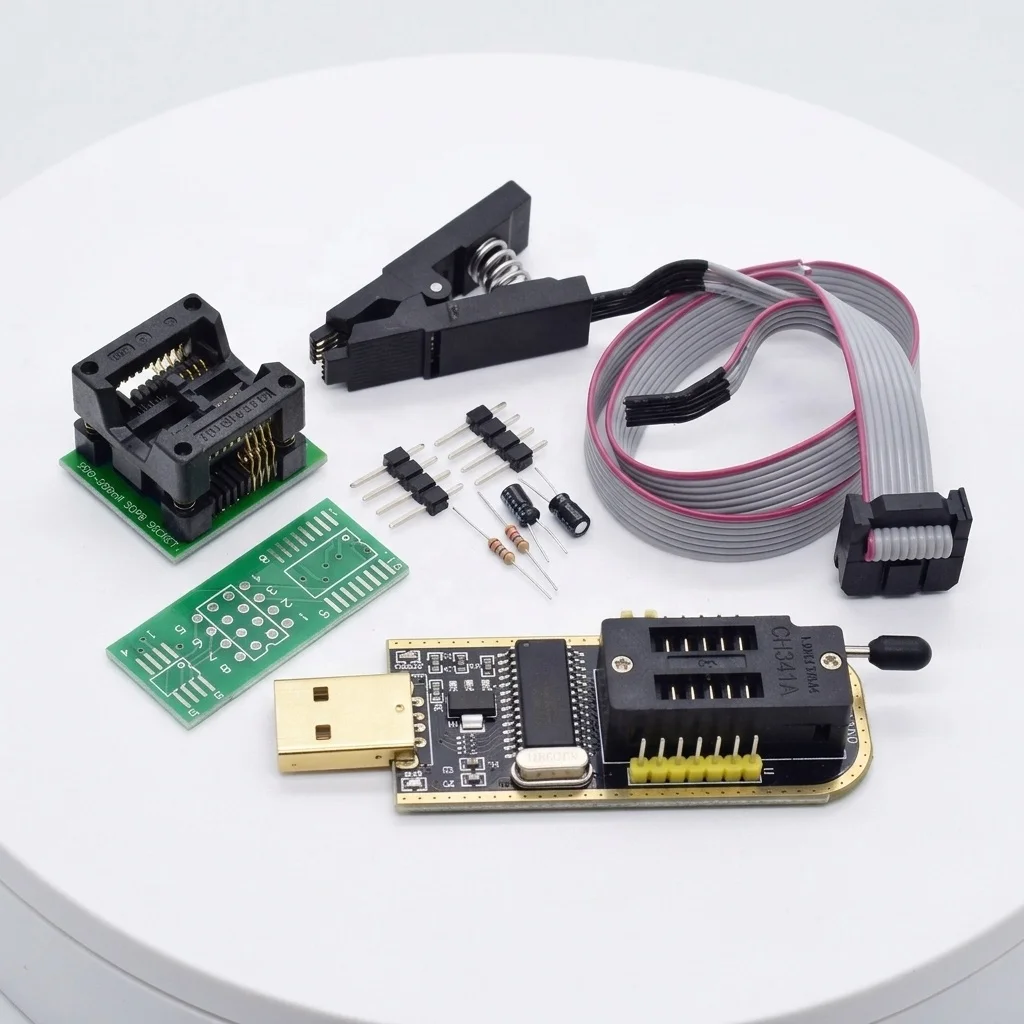

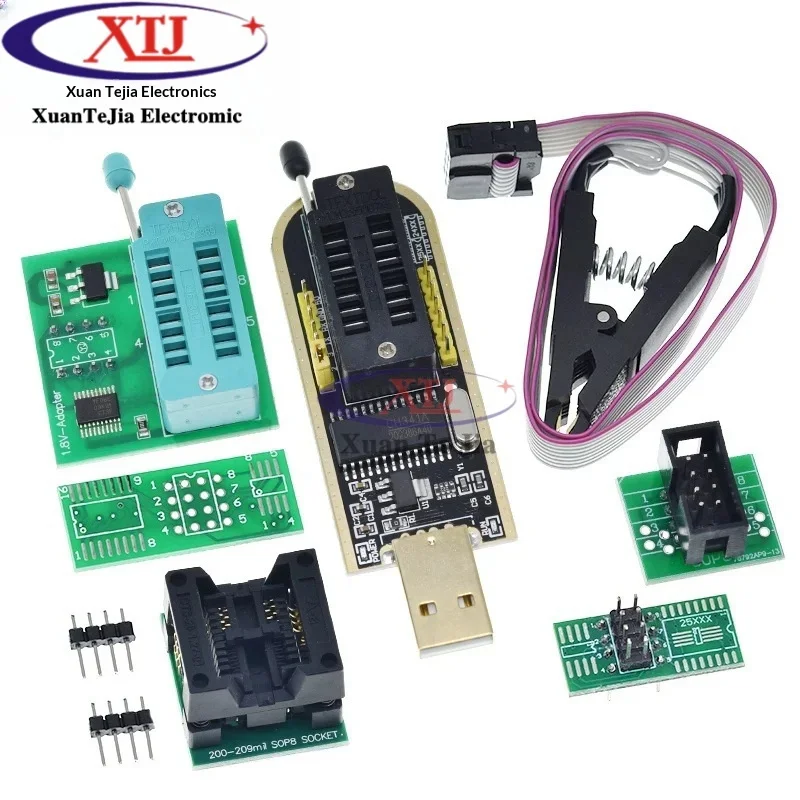

Package Includes
- 1 × Gold CH341A USB programmer
- 1 × SOIC8 test clip with ribbon cable
- 1 × 1.8V voltage adapter
- 1 × SOIC8/SOP8 socket adapter
- 1 × SOP8-to-DIP8 adapter board
- Pin headers and installation accessories
Package contents may vary slightly according to the selected kit.
