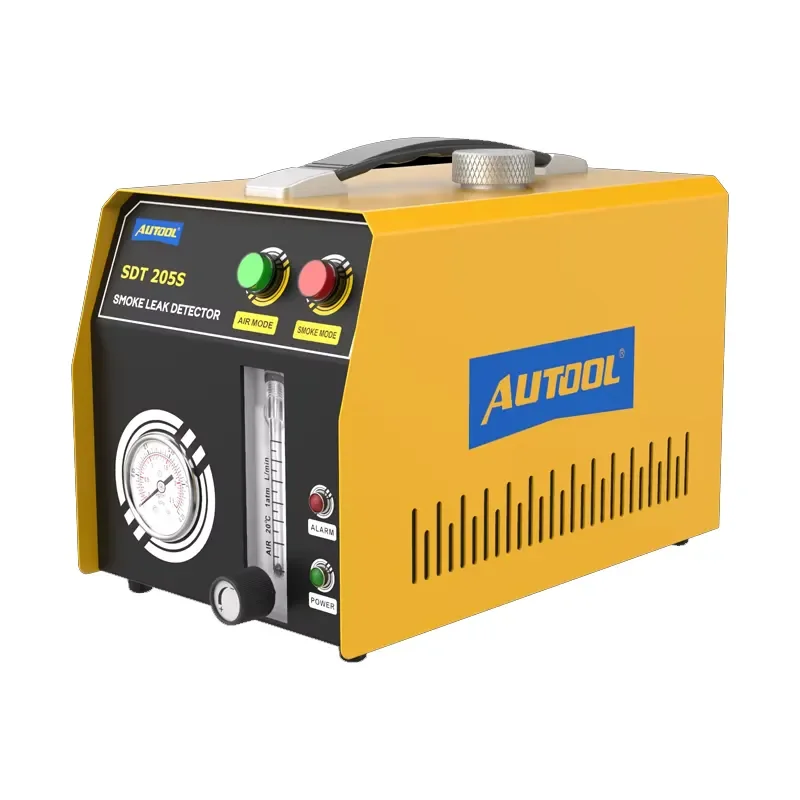

AUTOOL SDT205S Automotive Smoke Leak Detector
The AUTOOL SDT205S Smoke Leak Detector is a professional automotive testing machine designed to locate difficult leaks in vehicle pipe and air systems by filling the tested circuit with visible smoke.
It features a built-in air pump, so an external workshop air compressor is generally not required. The machine first introduces air to help determine whether the system is leaking, then generates smoke that escapes from the faulty location and makes the leak easier to identify.
Main Features
• Built-in air pump for convenient standalone operation
• Air mode for preliminary leak testing
• Smoke mode for locating the exact leak position

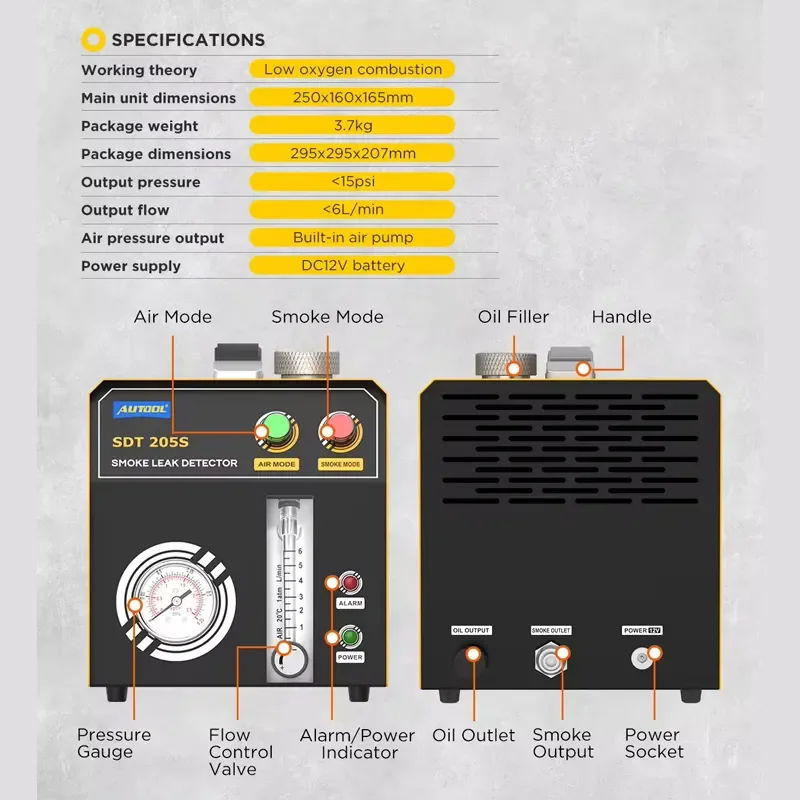

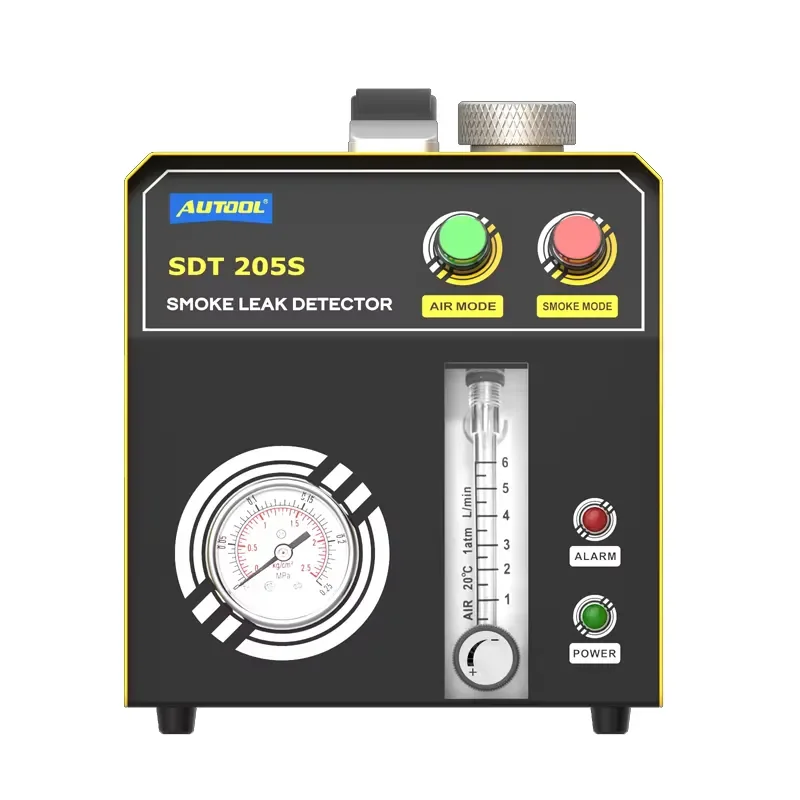

• Pressure display for monitoring the tested system
• Adjustable airflow for different testing requirements
• Visible smoke output helps reveal small leaks
• Powered from a 12V vehicle battery
• Overheat protection for safer operation
• Compact metal body suitable for workshop use

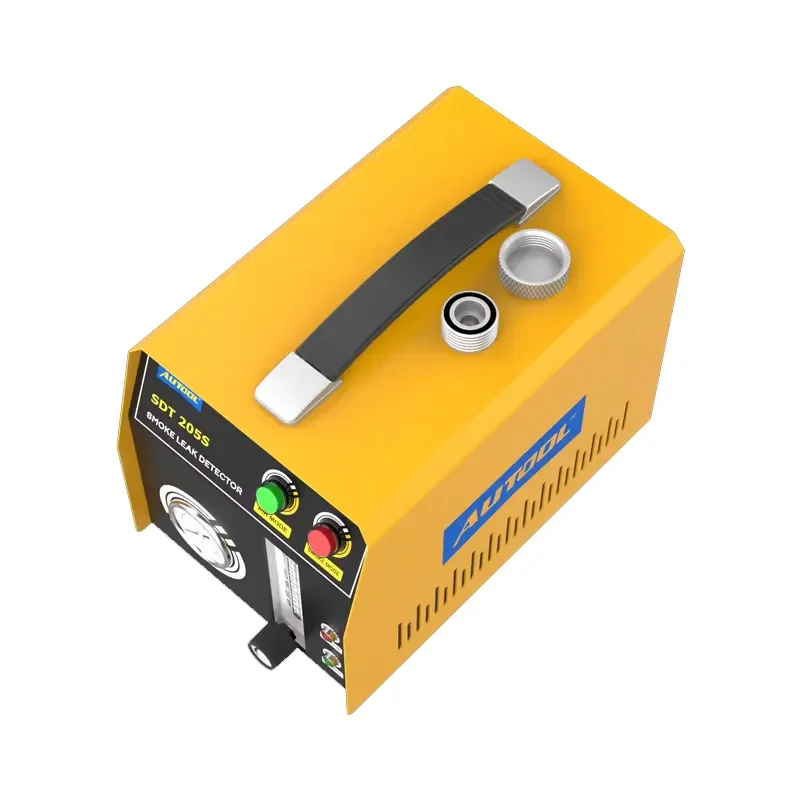

• Carrying handle for easier transportation
• Suitable for professional mechanics and automotive technicians
Suitable Vehicle Systems
The SDT205S can be used to test compatible sealed systems such as:
• EVAP emission-control systems
• Engine intake manifolds
• Vacuum hoses
• Turbocharger and intercooler pipes
• Exhaust systems when cold
• Throttle-body connections
• Crankcase ventilation systems
• Fuel-vapour lines
• Air-filter and intake pipes
• Seals, joints and pipe connections
• Other low-pressure automotive pipe systems
Not every system should be tested at the same pressure. Always follow the vehicle manufacturer’s testing procedure.
Air Leak Test
Before generating smoke, the built-in air pump can introduce controlled airflow into the closed system.
Observe the pressure and airflow response:
• If the system maintains pressure, a significant leak may not be present.
• If the pressure drops or airflow continues, the system may contain a leak.
• Switch to smoke mode to identify the exact leaking location.
Smoke Leak Detection
During smoke mode, the machine produces visible smoke and sends it through the connected hose into the tested system.
Inspect all hoses, joints, seals and connectors. Smoke escaping from a component or connection indicates the probable leak location.
Common leaks may be found around:
• Split vacuum hoses
• Loose clamps
• Damaged intake boots
• Injector seals
• Manifold gaskets
• EVAP hoses and valves
• Turbo and intercooler connections
• Exhaust joints
• Crankcase ventilation pipes
How to Use
- Make sure the engine and exhaust system are cool.
- Identify and isolate the system that will be tested.
- Add the recommended smoke fluid to the machine without exceeding the permitted level.
- Connect the power clamps to a stable 12V battery, observing correct polarity.
- Connect the smoke hose to the tested system using the appropriate adapter.
- Seal the remaining system openings.
- Use air mode first to check whether the system holds pressure.
- Select smoke mode when required.
- Adjust the airflow gradually and observe the pressure.
- Inspect the system for escaping smoke.
- Switch off and disconnect the machine after completing the test.
Built-In Air Pump
The integrated pump makes the SDT205S practical for mobile technicians and workshops that do not want to connect an external compressor for every test.
The built-in pump supplies the low-pressure airflow required for smoke testing. It should not be treated as a general-purpose high-pressure air compressor.
Pressure Monitoring
The pressure display helps the technician monitor the tested system and avoid applying unnecessary pressure.
This is especially important when testing sensitive EVAP components, valves, sensors and plastic pipes. Always begin with low airflow and follow the vehicle manufacturer’s recommended test pressure.
Recommended Smoke Fluid
Use only compatible automotive smoke-machine fluid or the fluid recommended by AUTOOL.
Do not use:
• Petrol or diesel fuel
• Brake fluid
• Alcohol
• Solvents
• Engine coolant
• Flammable cleaning liquids
• Unknown or contaminated oils
Using unsuitable fluid can damage the heating element, create hazardous vapours or reduce smoke quality.
Important Safety Notes
• Use the machine only with a stable 12V DC power supply.
• Observe correct battery-clamp polarity.
• Do not use the machine near flames, sparks or flammable vapours.
• Never introduce smoke into a hot engine or hot exhaust system.
• Do not perform the test while the engine is running.
• Do not overpressurise EVAP or other sensitive systems.
• Follow the vehicle manufacturer’s repair information and pressure limits.
• Do not test high-pressure fuel, brake, air-conditioning or hydraulic circuits.
• Do not use the device on high-voltage electric-vehicle battery systems.
• Work in a well-ventilated area and avoid directly inhaling the smoke.
• Allow the machine to cool if its thermal protection activates.
• Drain or store the smoke fluid according to the manufacturer’s instructions.

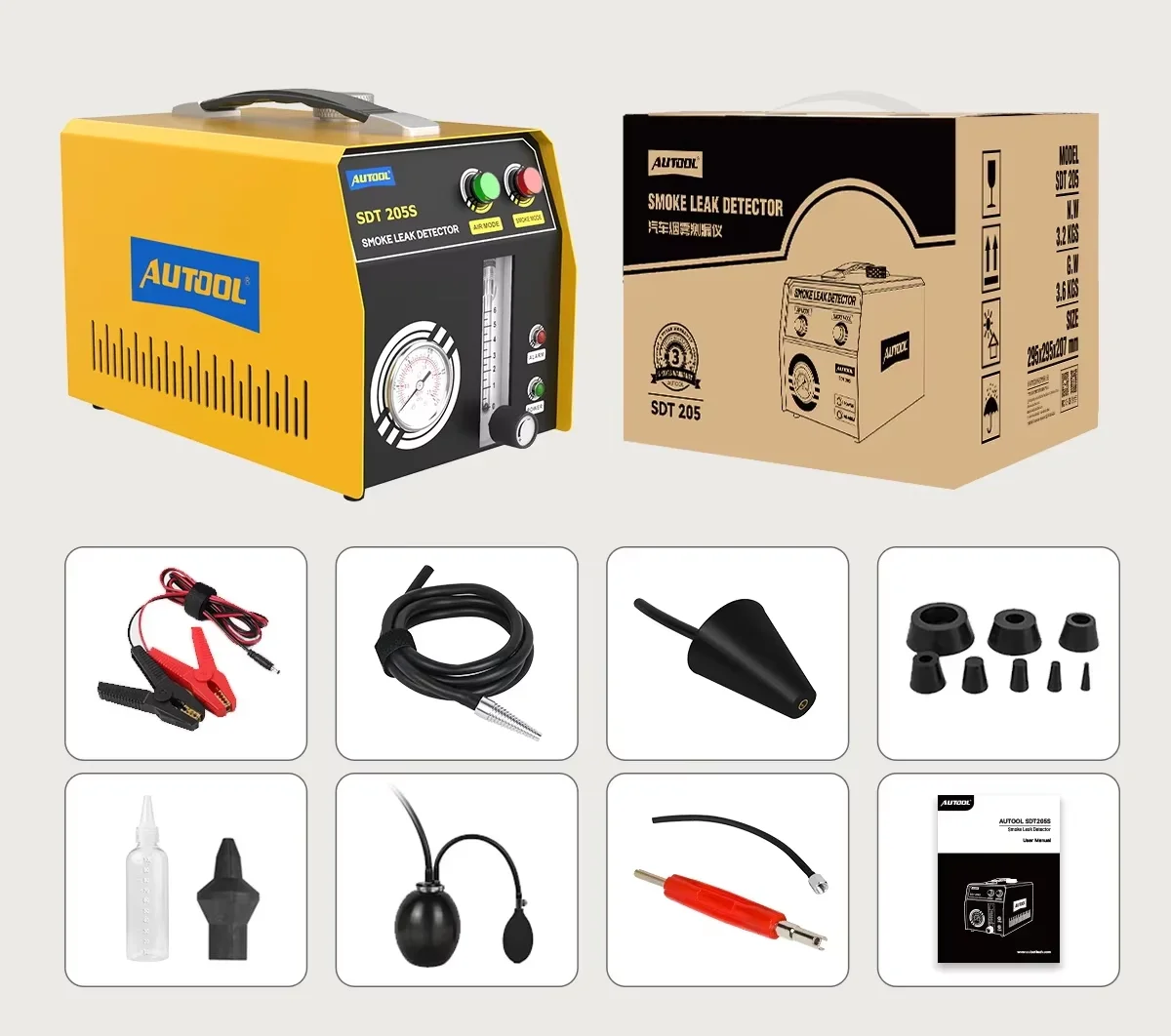

Package Includes
• 1 × AUTOOL SDT205S Smoke Leak Detector
• 1 × Smoke Delivery Hose
• 1 × 12V Battery Power Cable with Clamps
• 1 × Vehicle Intake Adapter
• 1 × Tapered Connection Adapter
• 1 × Set of Sealing Accessories
• 1 × Hanging Hook
• 1 × User Manual
Package accessories may vary according to the supplied version. Smoke fluid may not be included because of shipping restrictions.
