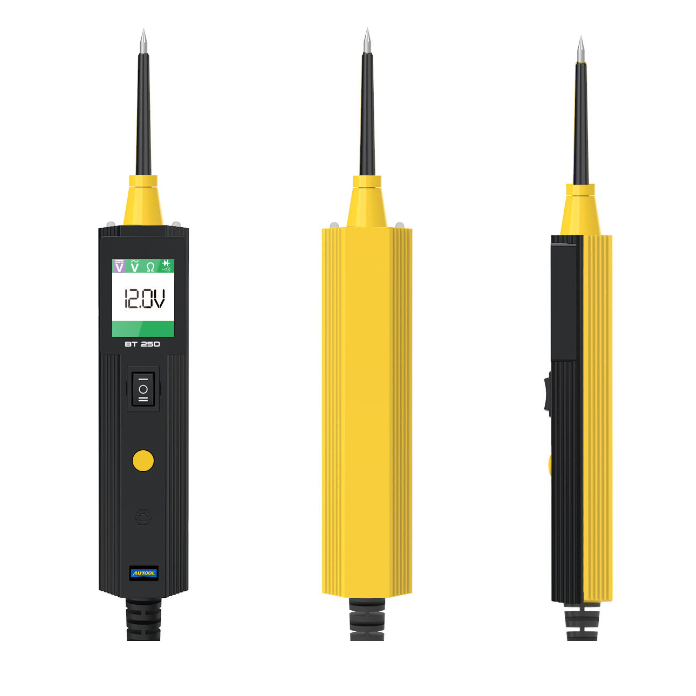

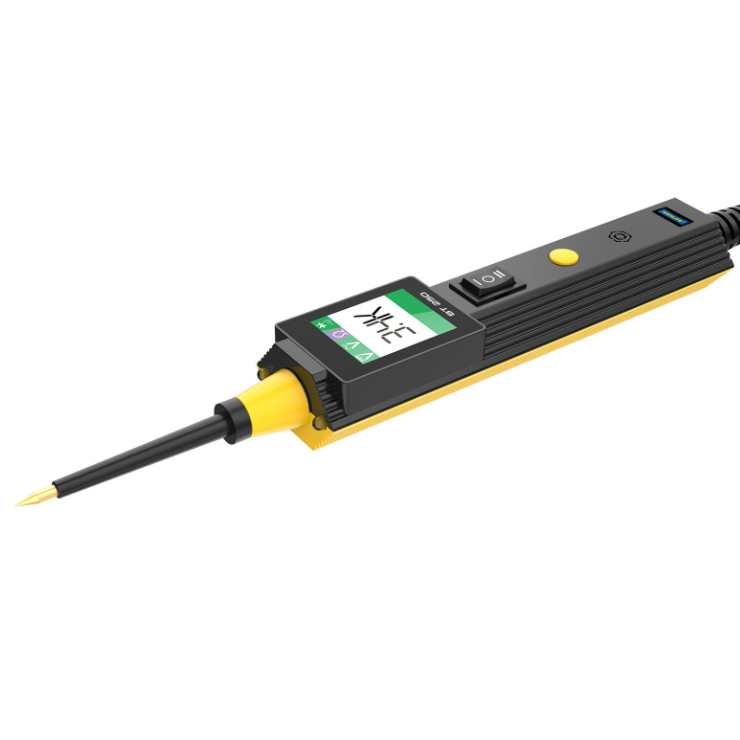

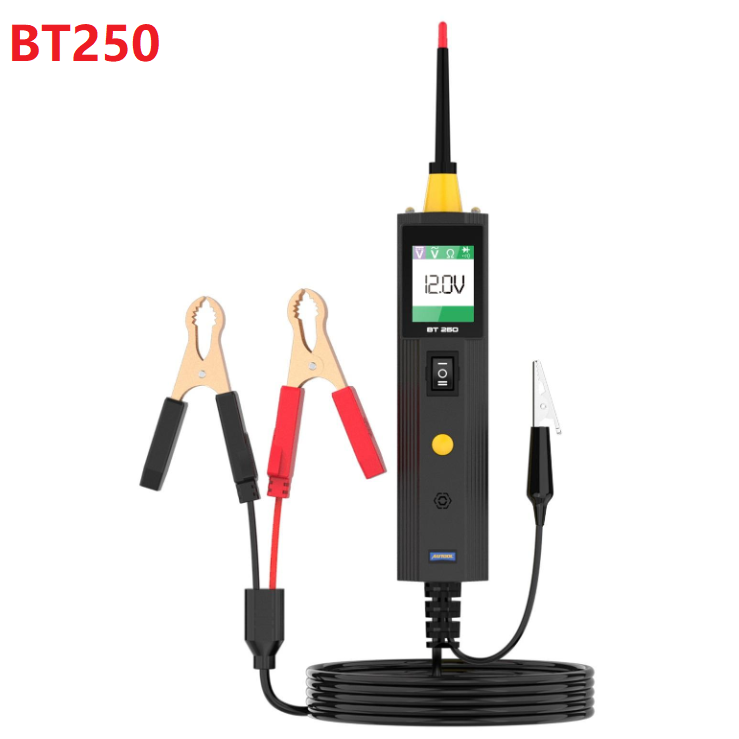

AUTOOL BT250 Automotive Electrical Circuit Tester
The AUTOOL BT250 Circuit Tester is a professional automotive power probe designed to diagnose electrical circuits quickly and accurately. It helps technicians test voltage, resistance, diodes, continuity and polarity while locating open circuits, short circuits and poor ground connections.
Its high-definition color display provides clear readings, while power from the vehicle battery allows continuous operation without separate batteries.
Main Features

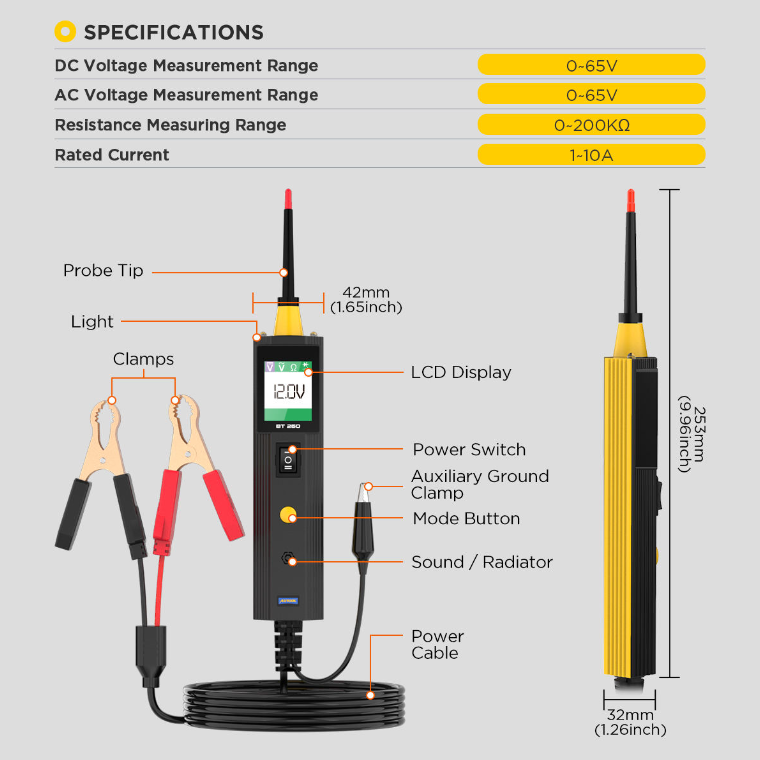

- Four testing modes: DC voltage, AC voltage, resistance and diode
- Automotive voltage testing range from 0V to 65V
- Displays AC frequency and duty cycle
- Identifies positive and negative circuit polarity
- Tests circuit continuity and ground connections
- Locates open circuits, short circuits and wiring faults
- Activates compatible electrical components for direct testing
- High-definition color display for clear readings
- Automatic short-circuit and overload protection
- Powered directly by the vehicle battery
- Suitable for cars, motorcycles, trucks, RVs, boats and other compatible vehicles
Four Electrical Testing Modes
DC Voltage Test
Measures DC voltage in automotive electrical systems and helps identify voltage drops, power interruptions and abnormal circuit readings.
AC Voltage Test
Measures AC voltage while displaying frequency and duty-cycle information for supported signal circuits.
Resistance Test
Checks circuit resistance to help locate damaged wiring, poor connections and excessive resistance in electrical components.
Diode Test
Tests diode operation and helps determine whether the component is functioning correctly.
Automotive Circuit Diagnosis
The BT250 can be used to inspect many vehicle electrical components and circuits, including:
- Fuses and fuse boxes
- Relays and switches
- Headlights and taillights
- Electrical sockets
- Wiring harnesses
- Ground connections
- Motors and actuators
- Signal circuits
- Battery and charging circuits
Component Activation
When used according to the vehicle manufacturer’s procedures, the tester can supply temporary power or ground to compatible components. This helps technicians test components such as:
- Radiator fans
- Starter motors
- Relays
- Power-window motors
- Windshield wipers
- Lights and other compatible electrical accessories
Automatic Circuit Protection
The built-in protection system helps protect the tester and vehicle during accidental overloads or short circuits. The device automatically interrupts the output and restarts after the fault has been removed.
Easy Vehicle-Powered Operation

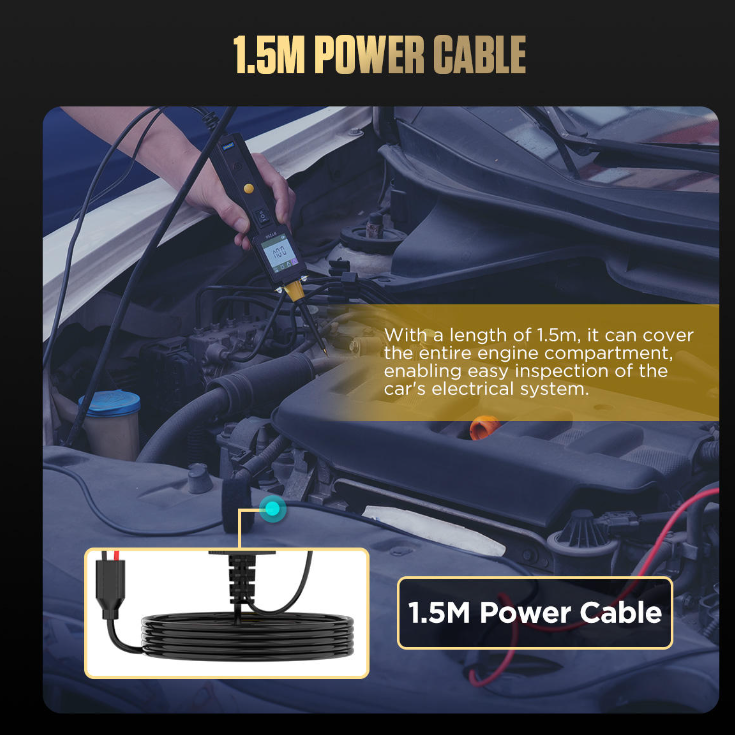

Connect the tester to the vehicle battery using the supplied power leads. The BT250 receives power directly from the battery, eliminating the need for disposable or rechargeable internal batteries.
Wide Vehicle Compatibility
The AUTOOL BT250 is suitable for diagnosing compatible low-voltage electrical systems in:
- Passenger cars
- Motorcycles
- Light commercial vehicles
- Trucks
- Recreational vehicles
- Boats
- Excavators and selected machinery
Important Notes
- This product is an automotive electrical circuit tester, not an OBD2 diagnostic scanner.
- It does not read or clear engine, ABS, airbag or transmission fault codes.
- Do not connect it to household AC electricity or other high-voltage systems.
- Never apply power directly to airbags, ECUs or sensitive electronic modules.
- Confirm the correct voltage, polarity and manufacturer testing procedure before activating any component.
- Vehicle compatibility and supported tests depend on the circuit design and application.
- Package contents may vary by seller; verify the selected package before ordering.
