AUTOOL AS503 Oil Tester
The AUTOOL AS503 Oil Tester is designed to provide a fast and convenient indication of engine-oil condition. It evaluates the optical transmittance of the oil while displaying its real-time temperature, helping technicians and vehicle owners identify oil that may require further inspection or replacement.
With separate testing modes for gasoline and diesel engine oils, a clear 2.8-inch backlit display and a long flexible probe, the AS503 is suitable for workshops, vehicle inspections and routine maintenance.
Main Features
- Measures engine-oil optical transmittance
- Displays real-time oil temperature
- Provides a clear oil-condition status
- Separate modes for gasoline and diesel engine oil
- 2.8-inch backlit LCD screen
- Long 800 mm flexible PTFE probe
- Supports Celsius and Fahrenheit temperature units
- Fast and straightforward testing process
- Suitable for compatible cars, vans and trucks
- Useful for workshops, used-car inspections and routine servicing
Gasoline and Diesel Testing Modes
The tester includes dedicated modes for gasoline and diesel engine oils. Selecting the correct mode is important because the appearance and optical characteristics of used diesel oil can differ significantly from those of gasoline engine oil.

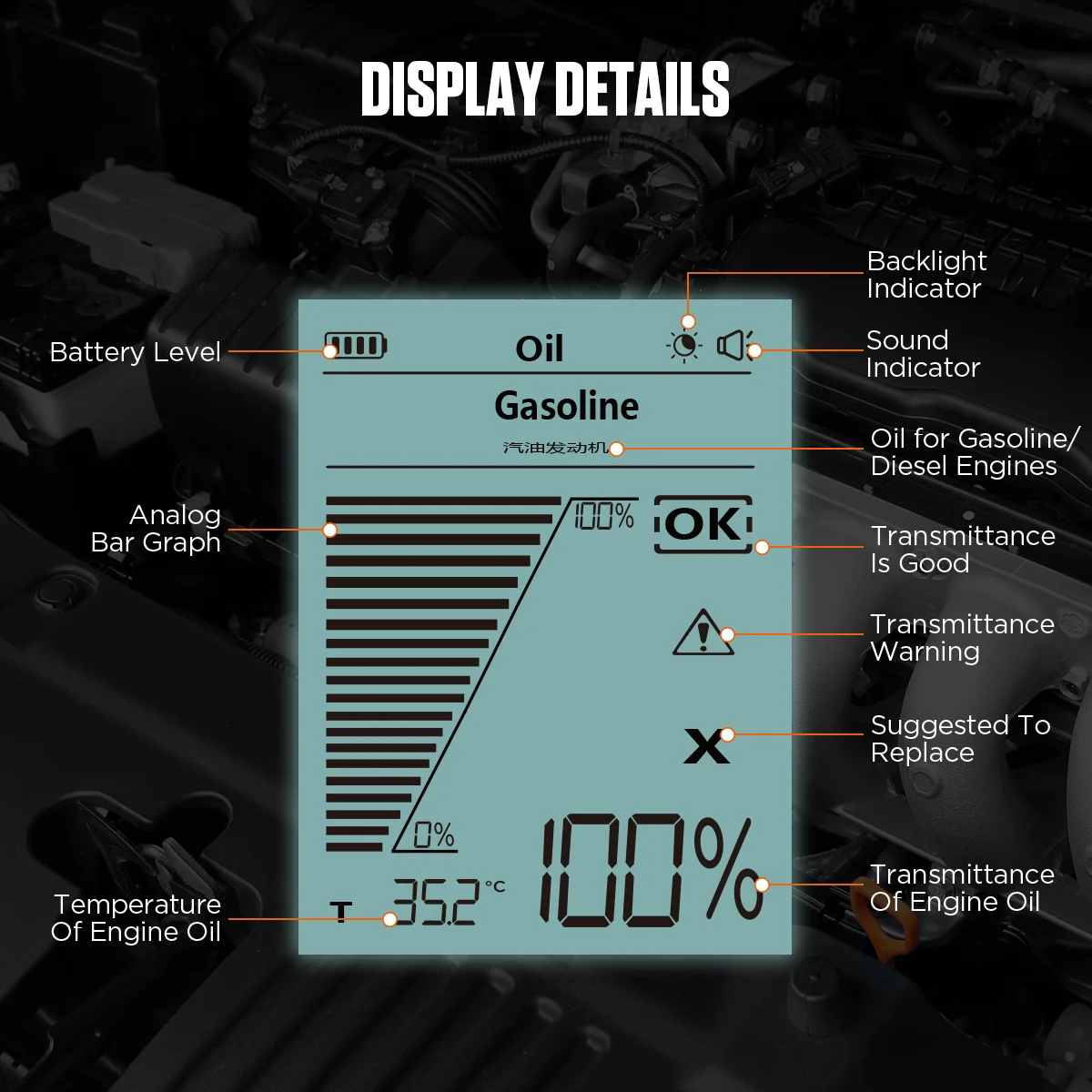

Real-Time Information
The screen displays the current measurement information, including:
- Oil transmittance reading
- Oil temperature
- Oil-condition indication
- Selected gasoline or diesel testing mode
Flexible 800 mm Probe
The extended flexible probe makes it easier to reach oil through compatible dipstick or sampling points. Its PTFE construction is designed for convenient cleaning and repeated workshop use.

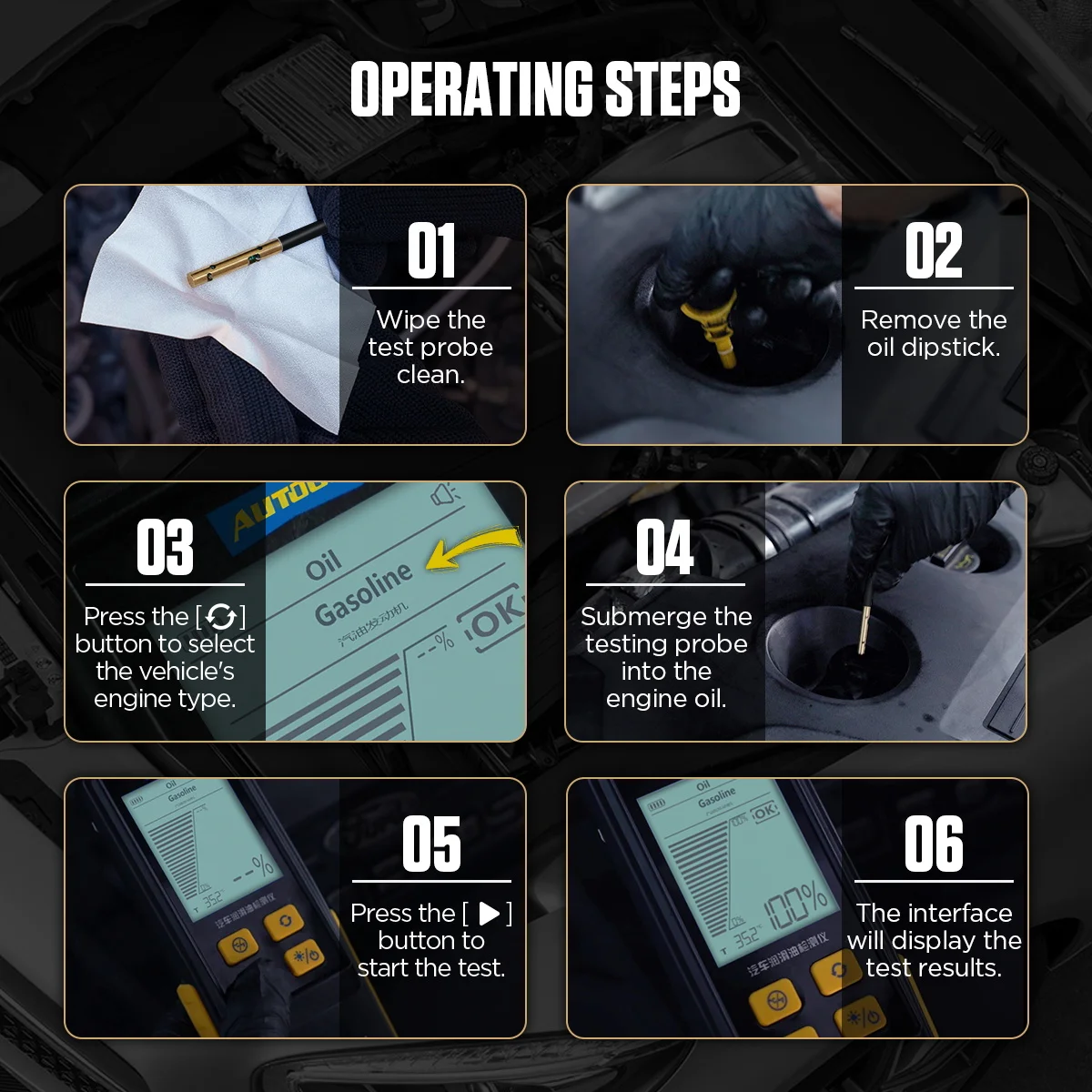

How to Use
- Switch off the engine and allow the engine oil to cool.
- Confirm that the oil temperature is below 60°C before testing.
- Select the correct gasoline or diesel oil mode.
- Clean and dry the probe before inserting it into the oil.
- Follow the device instructions and wait for the result.
- Remove the probe and clean it thoroughly after testing.
Important Information
The AUTOOL AS503 provides an indicative oil-condition result based primarily on optical transmittance and temperature. It does not perform a complete laboratory oil analysis and cannot precisely determine viscosity, additive depletion, fuel dilution, coolant contamination or metal-particle concentration.
The result should be considered together with the vehicle manufacturer’s recommended oil-change interval, mileage, operating conditions and service history. Always use the correct testing mode, especially when checking diesel engine oil.
Safety Instructions
- Never test oil when its temperature exceeds 60°C.
- Switch off the engine before inserting the probe.
. - Keep the probe away from moving or rotating engine components.
- Wear suitable protection when working around hot engine oil.
- Clean the probe before and after every measurement.
- Do not immerse the tester body in oil or other liquids.
Applications
- Engine-oil condition screening
- Preventive vehicle maintenance
- Used-car inspection
- Workshop servicing
- Gasoline engine oil testing
- Diesel engine oil testing
- Compatible passenger cars, commercial vehicles and trucks
Please Note
Vehicle and oil compatibility may vary. This product is an oil-condition tester and is not an OBD2 diagnostic scanner. Always follow the vehicle manufacturer’s maintenance schedule and the instructions supplied with the tester.
