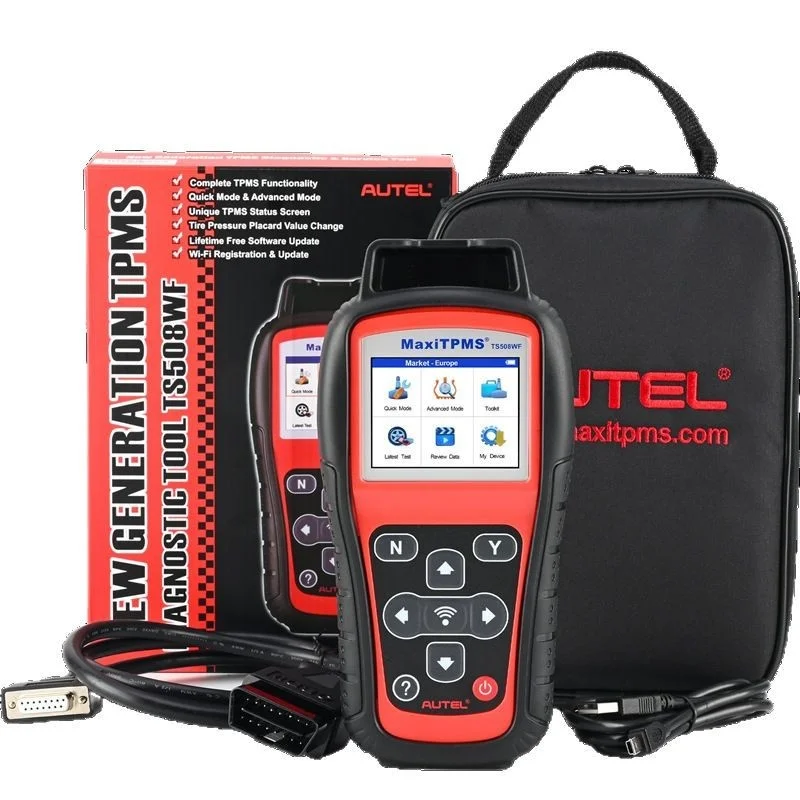

AUTEL MaxiTPMS TS508WF TPMS Diagnostic & Programming Tool
The AUTEL TS508WF is a professional TPMS service tool designed for automotive technicians, tire shops and vehicle maintenance centers. It combines sensor activation, sensor programming, system diagnosis and TPMS relearn functions in one portable device.
The tool features two operating modes. Quick Mode provides fast access to frequently used sensor activation and MX-Sensor programming functions. Advanced Mode provides a complete TPMS workflow, including sensor checking, system diagnosis, MX-Sensor programming and sensor position relearning.
Main Features
• Activates supported TPMS sensors
• Reads sensor ID, tire pressure and temperature
• Displays sensor battery status and sensor position
• Reads TPMS information stored in the vehicle ECU
• Reads and clears supported TPMS fault codes
• Displays detailed diagnostic trouble-code descriptions
• Programs compatible AUTEL MX-Sensors
• Performs supported TPMS relearn procedures
• Checks whether sensor IDs match the IDs stored in the ECU
• Offers Quick Mode and Advanced Mode

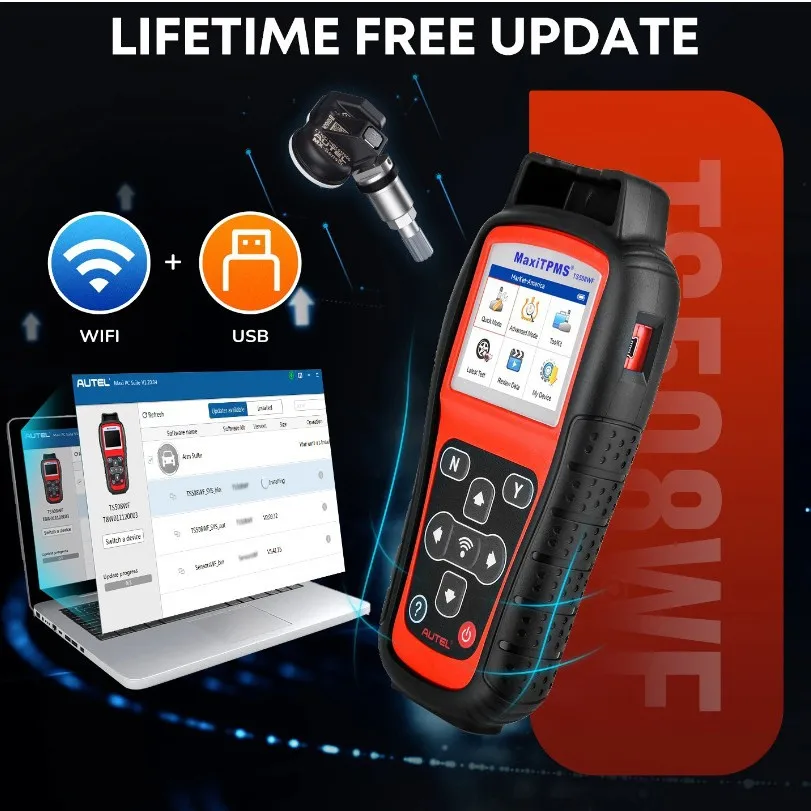

• Supports convenient Wi-Fi and USB software updates
• Stores service information for review and printing
TPMS Sensor Activation
The AUTEL TS508WF can activate supported original-equipment and aftermarket TPMS sensors. It displays available sensor information such as:
• Sensor identification number
• Tire pressure
• Tire temperature
• Sensor battery condition
• Sensor frequency
• Sensor position
MX-Sensor Programming
The device programs compatible AUTEL MX-Sensors using supported programming methods, including:
• Auto Create – automatically creates new sensor IDs
• Copy by OBD – retrieves sensor IDs stored in the vehicle ECU and programs them into compatible MX-Sensors
The TS508WF programs AUTEL MX-Sensors. Programming of sensors from other manufacturers is not guaranteed.

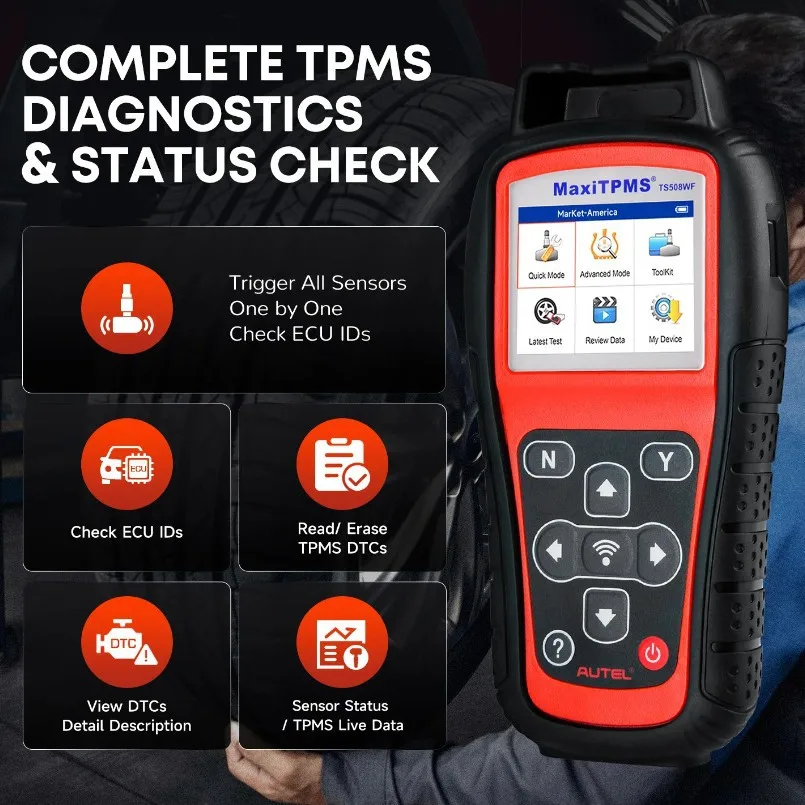

TPMS System Diagnosis
Advanced Mode allows technicians to diagnose supported TPMS systems by reading ECU sensor IDs, checking sensor and ECU ID matching conditions, reading diagnostic trouble codes and clearing supported TPMS faults after repairs.
TPMS Relearn
The tool provides vehicle-specific relearn instructions and supports the available relearn method for compatible vehicles. Depending on the vehicle, this may include stationary relearn, automatic relearn or OBD relearn.
Quick Mode
Quick Mode is designed for faster everyday TPMS service. It provides direct access to basic sensor checking and MX-Sensor programming functions.
Advanced Mode
Advanced Mode provides a complete TPMS service process:
• Sensor activation and checking
• TPMS system diagnosis
• MX-Sensor programming
• Sensor position relearning
• Fault-code reading and clearing
Technical Specifications
• Display: TFT color screen
• Display resolution: 320 × 240
• Battery: 3.7V, 3200mAh lithium-polymer battery
• Software updates: Wi-Fi or USB
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
Ideal For
• Tire service centers
• Automotive repair workshops
• Mobile technicians
• TPMS specialists
• Professional vehicle maintenance
Important Compatibility Notice
Available functions and relearn procedures depend on the vehicle manufacturer, model, year and TPMS system. Verify vehicle compatibility before purchasing. The TS508WF programs compatible AUTEL MX-Sensors and is not a universal programmer for every third-party TPMS sensor.
