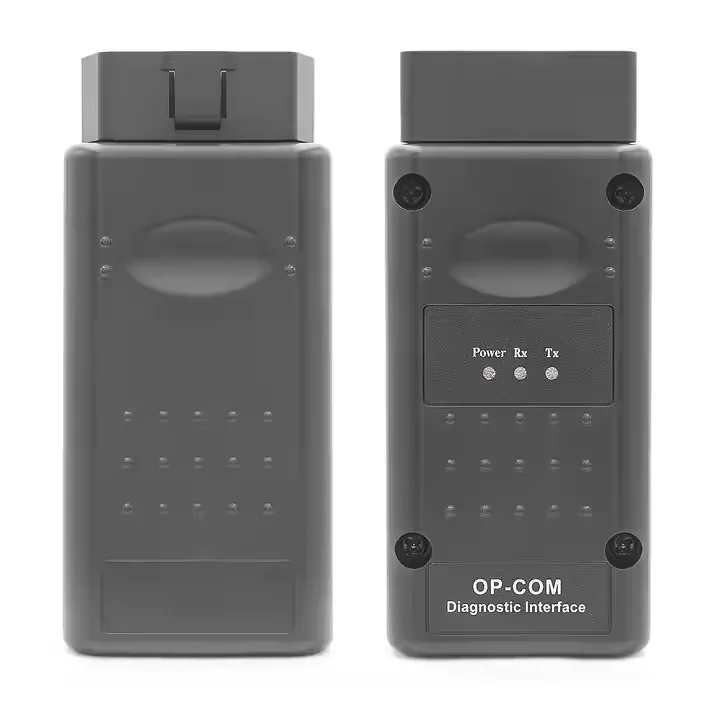

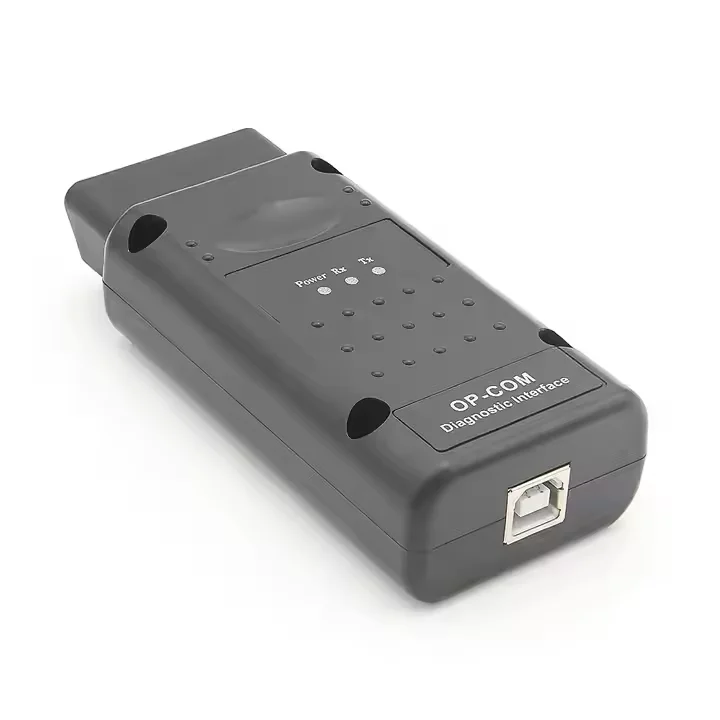

OP-COM V1.95 Opel Diagnostic Interface PIC18F458
The OP-COM V1.95 Opel Diagnostic Interface is a PC-based diagnostic adapter designed for compatible Opel and Vauxhall vehicles. It connects the vehicle’s OBD2 diagnostic port to a Windows computer through USB, allowing technicians and experienced vehicle owners to access supported electronic control modules.
This version uses a PIC18F458 microcontroller and supports CAN-BUS and selected earlier diagnostic communication protocols. Available functions depend on the vehicle model, production year, control module and installed OP-COM software version.
Main Features
- PIC18F458-based diagnostic interface
- Firmware version V1.95
- USB connection to a compatible Windows computer
- Supports compatible Opel and Vauxhall vehicles
- Communicates with supported CAN-BUS and K-Line systems
- Reads and clears diagnostic trouble codes
- Displays supported live vehicle data
- Identifies compatible electronic control modules
- Performs supported actuator and output tests
- Provides access to selected measuring blocks
- Supports selected service-reset and adaptation functions
- Firmware may be flash-updatable when compatible tools and files are used
Supported Diagnostic Functions
Depending on the vehicle and control module, the interface may provide access to:
- Engine control module
- Automatic transmission
- ABS and traction-control systems
- Airbag and restraint systems
- Instrument cluster
- Immobilizer system
- Body control module
- Climate-control system
- Central locking
- Steering and chassis modules
- Supported comfort and convenience systems
Possible operations include reading and clearing fault codes, viewing live parameters, running actuator tests, displaying ECU information and performing selected coding, adaptation or service procedures.
Vehicle Compatibility
The interface is intended primarily for compatible Opel and Vauxhall vehicles. Coverage may include selected models such as:
- Astra
- Corsa
- Vectra
- Zafira
- Meriva
- Insignia
- Antara
- Combo
- Omega
- Signum
- Tigra
- Agila
- Vivaro
Compatibility is not determined by the vehicle name alone. Always verify the model year, ECU type, communication protocol and required software version before ordering.
Firmware Update Notice
The PIC18F458 hardware may support firmware flashing, but firmware should only be changed using a verified file and a compatible flashing procedure. Installing incorrect firmware may prevent the interface from operating.
Do not update the firmware automatically through an unknown software version. Record the existing firmware version and keep a backup whenever possible.
Computer Requirements
- Compatible Windows PC or laptop
- Available USB port
- Correct OP-COM software and USB driver
- Sufficient technical knowledge for installation and operation
Software compatibility varies between packages and Windows versions. Use the supplied or recommended software and driver for this specific interface.

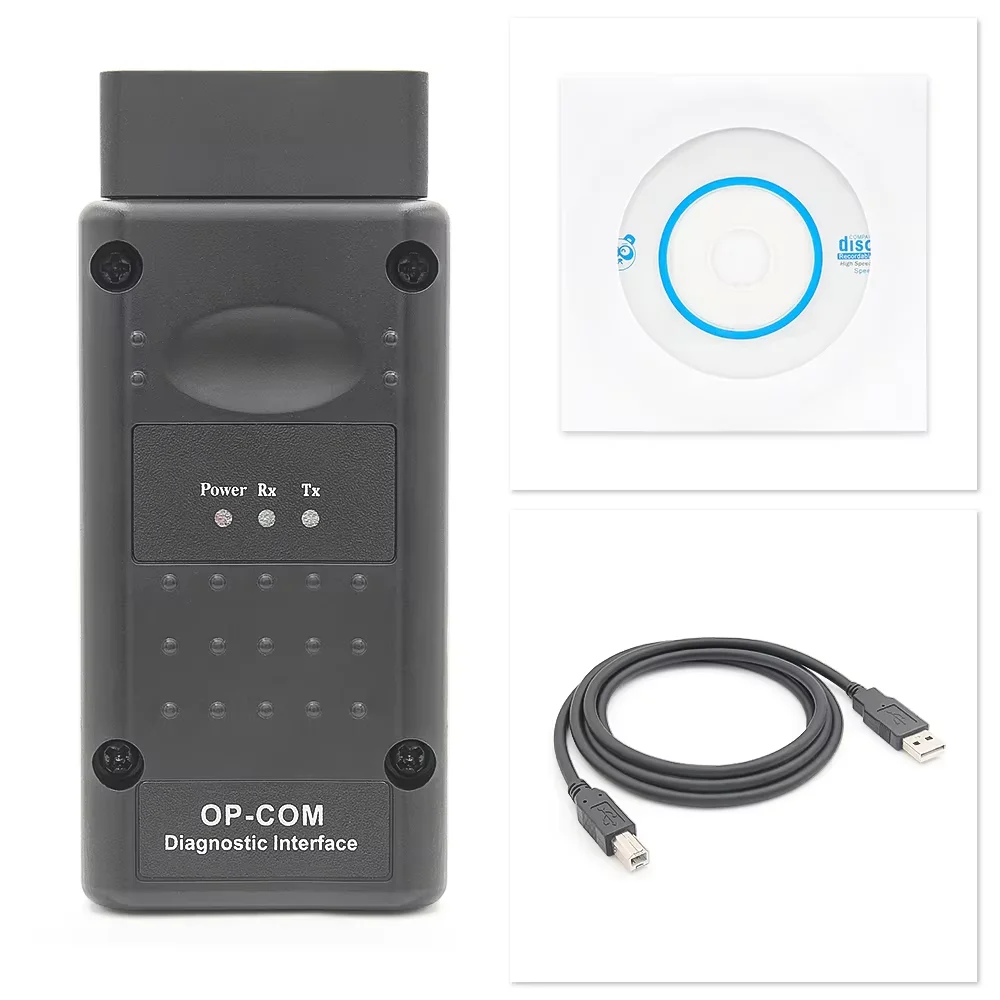

Package Contents
- 1 × OP-COM V1.95 diagnostic interface

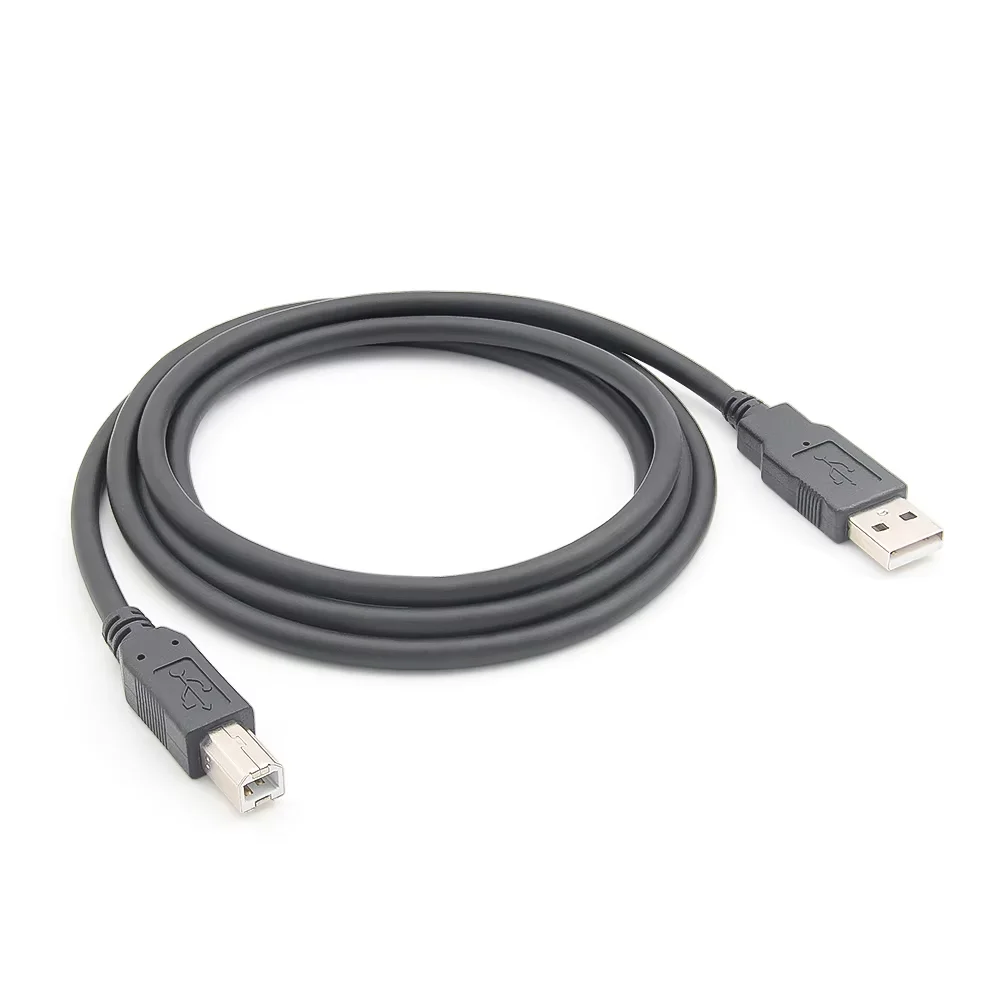

- 1 × USB connection cable
- 1 × Software disc, when supplied
Package contents may vary slightly according to available stock.
Important Information
This is an aftermarket diagnostic interface and is not represented as an original dealership product. Advanced coding and programming procedures should only be performed by qualified users. Always maintain stable vehicle voltage and save the original configuration before making changes.
Supported functions vary by vehicle, module and software version. Some vehicles may provide only basic diagnostic functions, while others may support additional tests, adaptations or coding.
