iProg+ Programmer with 6 Adapters
The iProg+ Programmer with 6 Adapters is a versatile automotive electronics tool designed for professional bench-programming and data-repair applications. It can work with supported EEPROM devices, microcontrollers, immobilizer systems, SRS airbag modules, dashboards and car radios.
The included adapter set provides several connection methods for supported automotive modules, including CAN, K-Line, UART, MBUS and BDM communication.
Functions and vehicle coverage depend on the installed software version, available scripts, adapter type, control module and memory device.
Main Functions
Depending on the installed scripts and supported hardware, iProg+ may provide:
- EEPROM reading and writing
- Supported MCU reading and writing
- SRS airbag crash-data repair
- Immobilizer and key-data service
- Dashboard and instrument-cluster service
- Supported car-radio code operations
- ECU and control-module data reading
- CAN and K-Line communication
- UART, MBUS and BDM operations
- RFID and transponder-related applications
- Data calculation using supported scripts
- Bench testing of selected automotive modules
Included Adapters
According to the displayed package, the set contains six programming adapters:

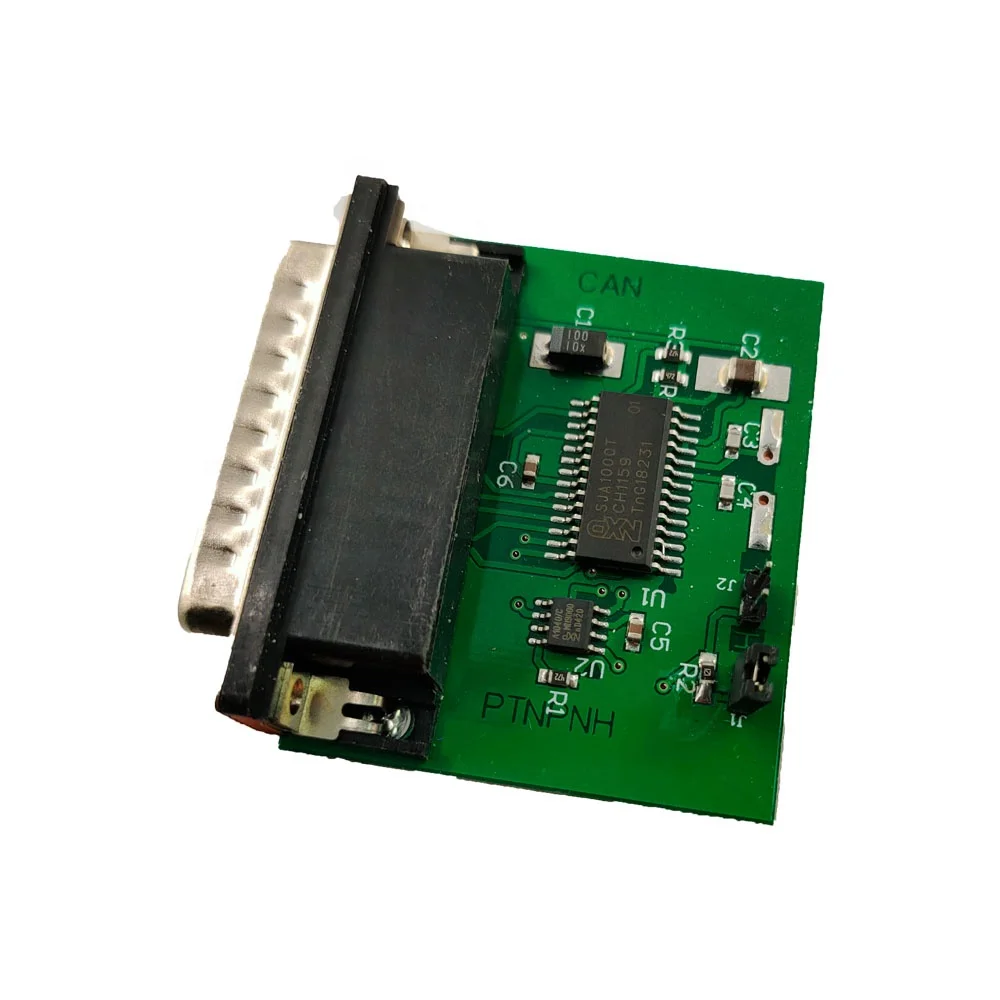

CAN Adapter
Designed for supported control units that communicate through CAN-BUS. Available functions depend on the selected script and module wiring.
K-Line Adapter
Used with supported modules that communicate through a K-Line diagnostic or bench connection.

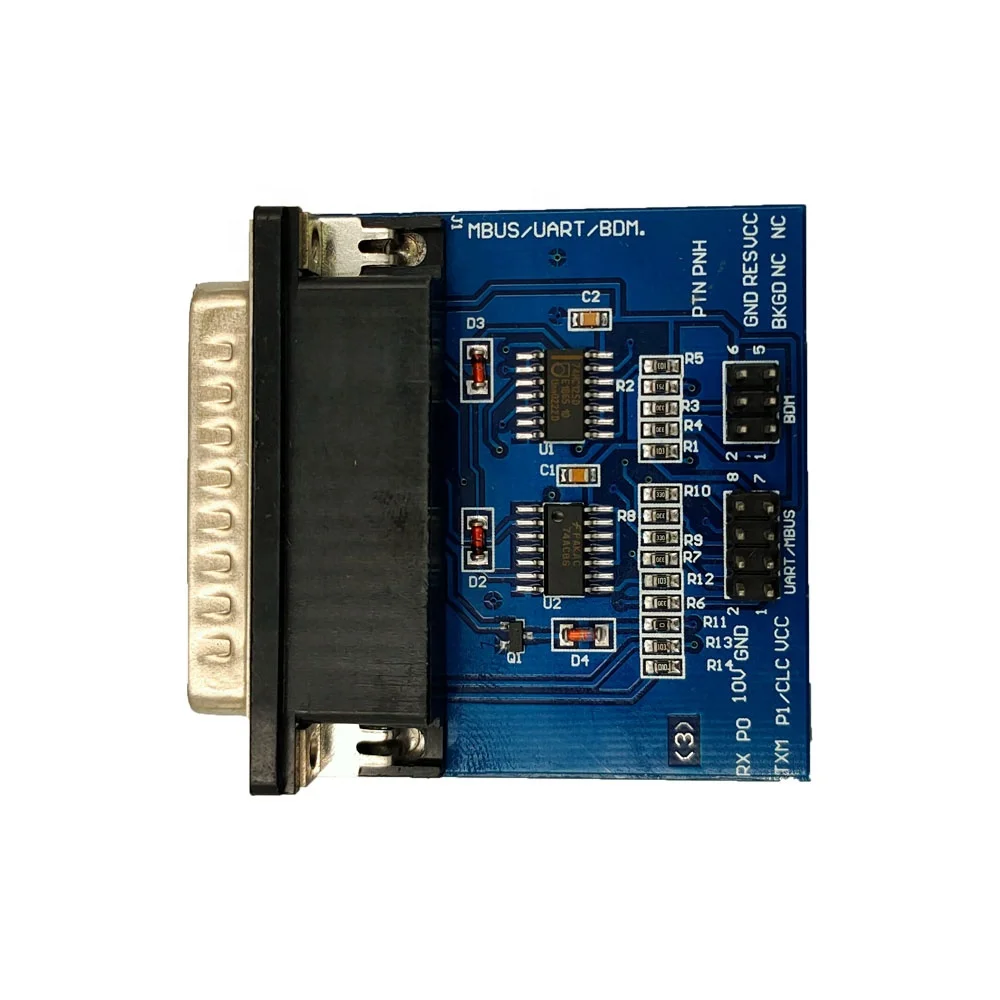

MBUS/UART/BDM Adapter
Provides supported MBUS, UART and BDM communication for compatible control modules and microcontrollers.
RFID Adapter
Used for selected transponder, key and immobilizer-related applications when supported by the installed scripts.

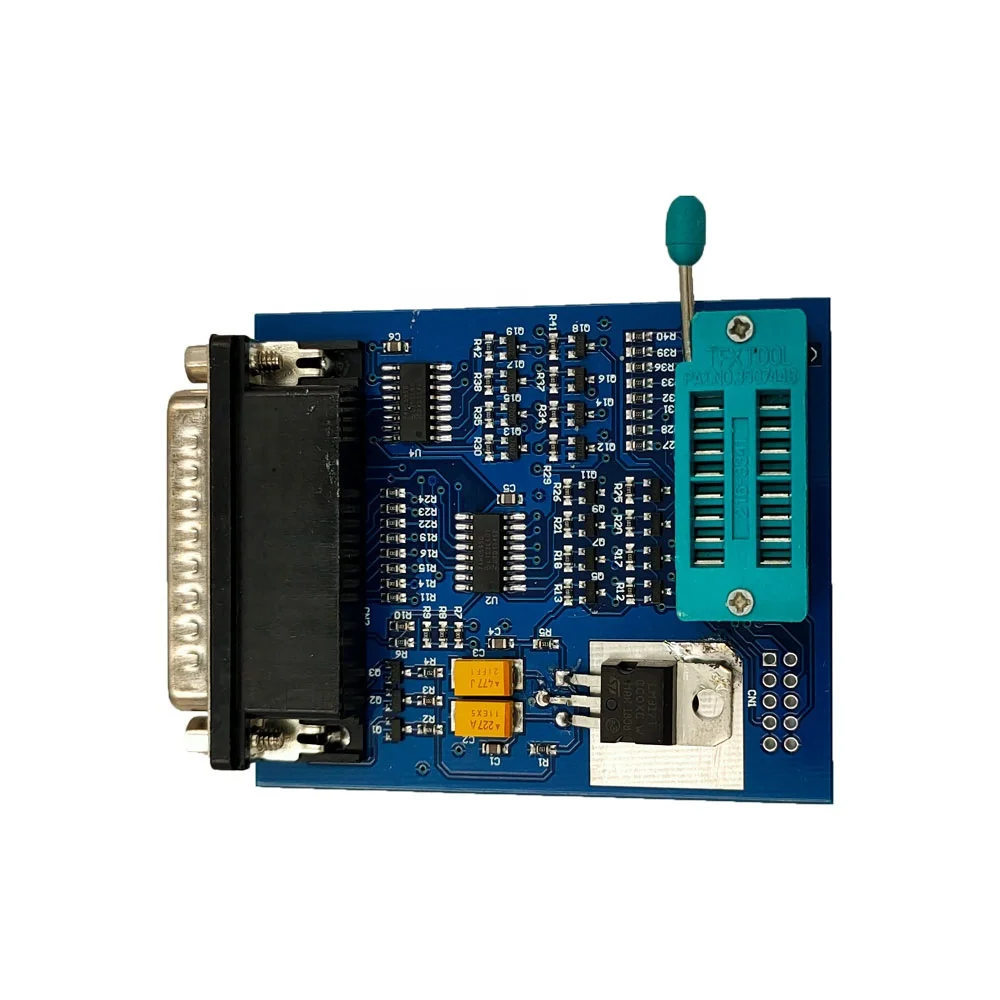

EEPROM Adapter
Designed for reading and writing supported EEPROM memory devices through the appropriate socket or wiring connection.
Multipurpose Programming Board
Provides additional connection points for supported chips, modules and bench-programming applications.
Adapter appearance and labeling may vary slightly according to the available production batch.
EEPROM and MCU Programming
The programmer can read, save and write data from supported EEPROM and microcontroller devices. Always make at least two verified backups before editing or writing any memory file.
EEPROM and MCU compatibility must be confirmed according to the exact chip number, package type, voltage and required connection method.
SRS Crash-Data Service
iProg+ can be used with supported scripts to read and repair data from compatible SRS and airbag modules. Supported operations vary according to the module manufacturer, processor and memory type.
Clearing crash information does not repair physically damaged components. The airbag system, sensors, wiring, seat-belt pretensioners and control module must be professionally inspected before returning the vehicle to service.
Immobilizer Functions
Depending on the vehicle and available script, the programmer may support reading, saving or preparing selected immobilizer and key data.
These functions are intended exclusively for lawful vehicle repair performed by the registered owner or an authorized automotive technician.
Dashboard Applications
The tool supports selected dashboard and instrument-cluster scripts. Compatibility depends on the cluster model, memory type and connection method.
Odometer-related operations must only be used for legal repair, module replacement or restoring the vehicle’s documented original mileage.

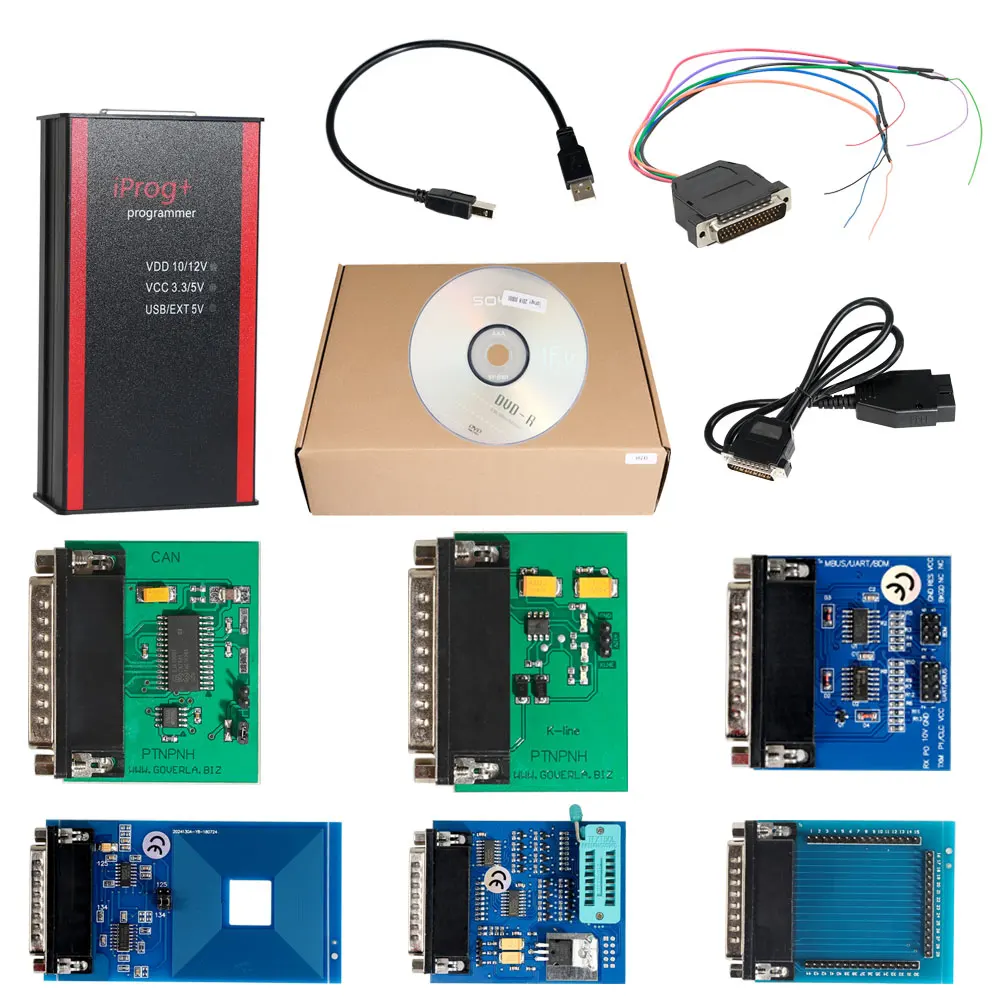

Package Contents
According to the displayed package:

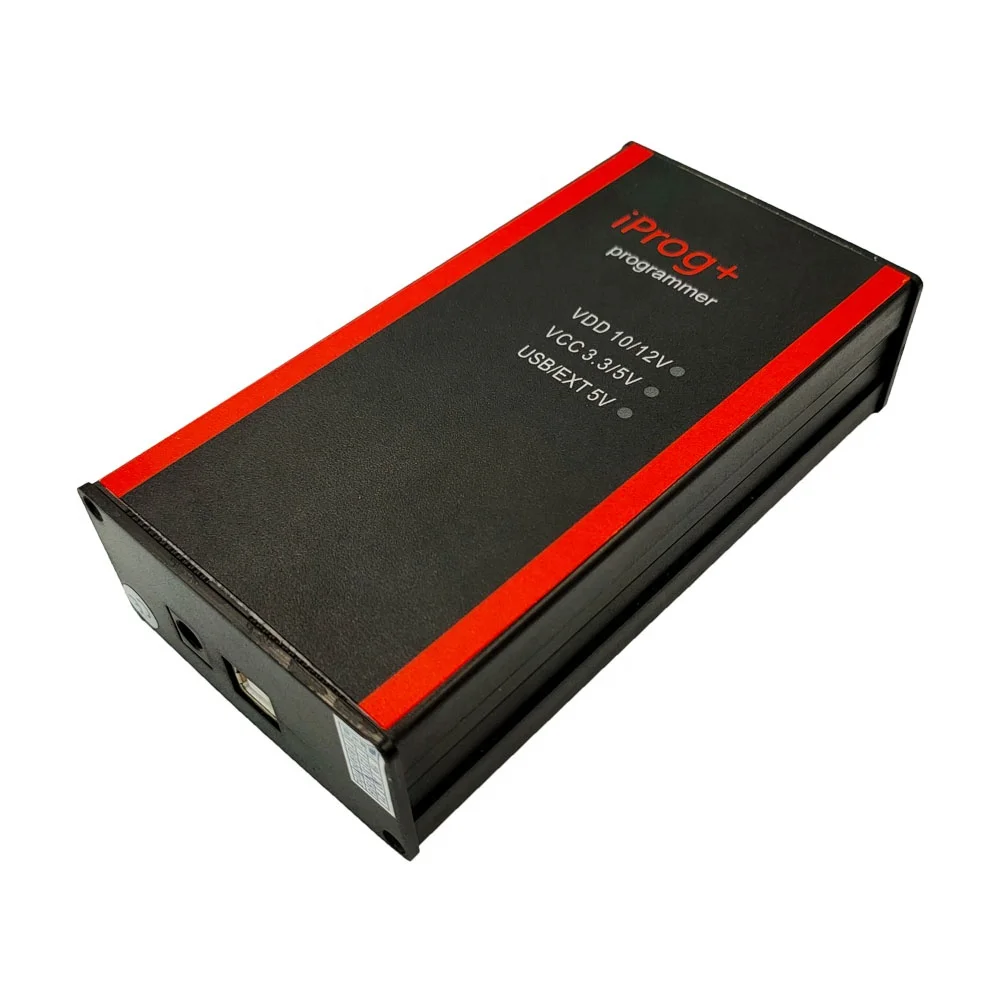

- 1 × iProg+ main programmer
- 1 × CAN adapter
- 1 × K-Line adapter
- 1 × MBUS/UART/BDM adapter
- 1 × RFID-related adapter
- 1 × EEPROM adapter
- 1 × Multipurpose programming board
- 1 × USB cable
- 1 × OBD or module connection cable
- 1 × DB25 wiring cable
- 1 × Software disc or software package
Package contents and adapter revisions may vary slightly. Please check the supplied set before ordering if a particular adapter is required.
Power and Connection Notice
Use only the power and connection method specified for the supplied hardware revision. Incorrect voltage, reversed polarity or an incorrect pinout may damage the programmer or connected module.
Do not apply external 12V power directly unless the instructions for the specific adapter and operation explicitly require it. Connect the programmer to a stable computer USB port and verify all wiring before starting.
Important Compatibility Notice
The phrase “supports IMMO, SRS and many functions” does not mean that every vehicle or module is supported. Functionality depends on:
- Software version
- Installed scripts
- Adapter revision
- Vehicle and module type
- EEPROM or MCU model
- Correct connection diagram
- User experience
Ask for compatibility confirmation using the vehicle model, production year, module number and chip reference before purchasing for a specific job.
Important Information
This product is an aftermarket programming tool and is not represented as an original manufacturer device.
Automotive programming may cause data loss or permanent module damage if an incorrect script, voltage, file or pinout is used. Always save and verify the original data before making changes.
Recommended for trained automotive-electronics technicians only.
