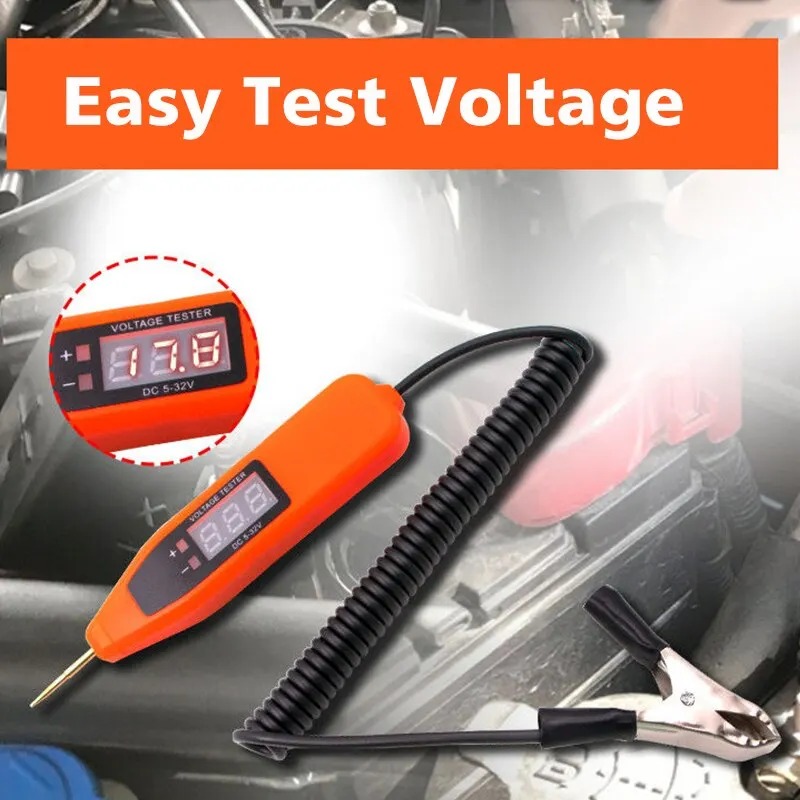

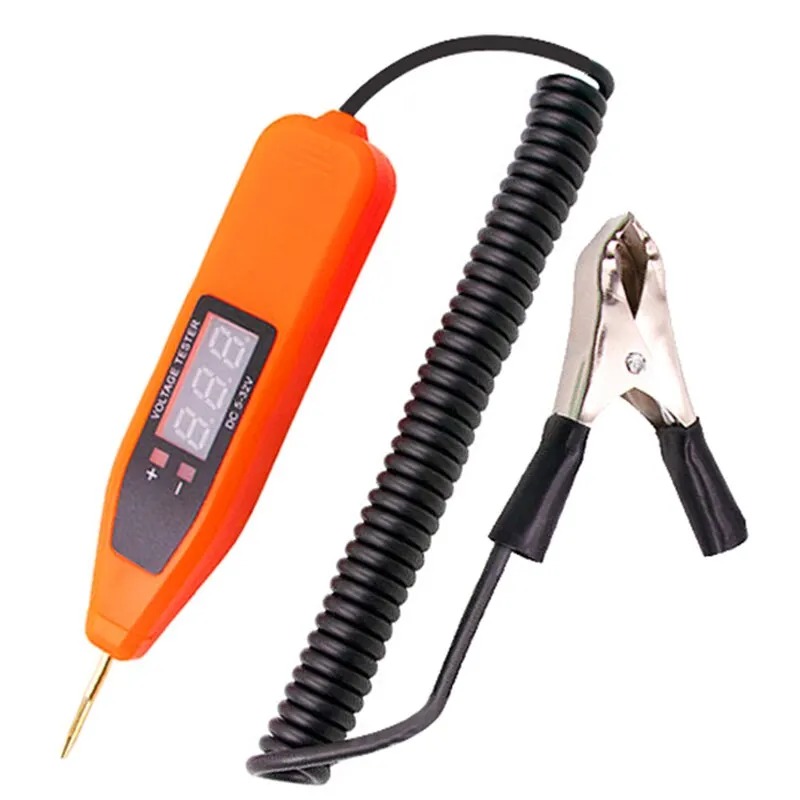

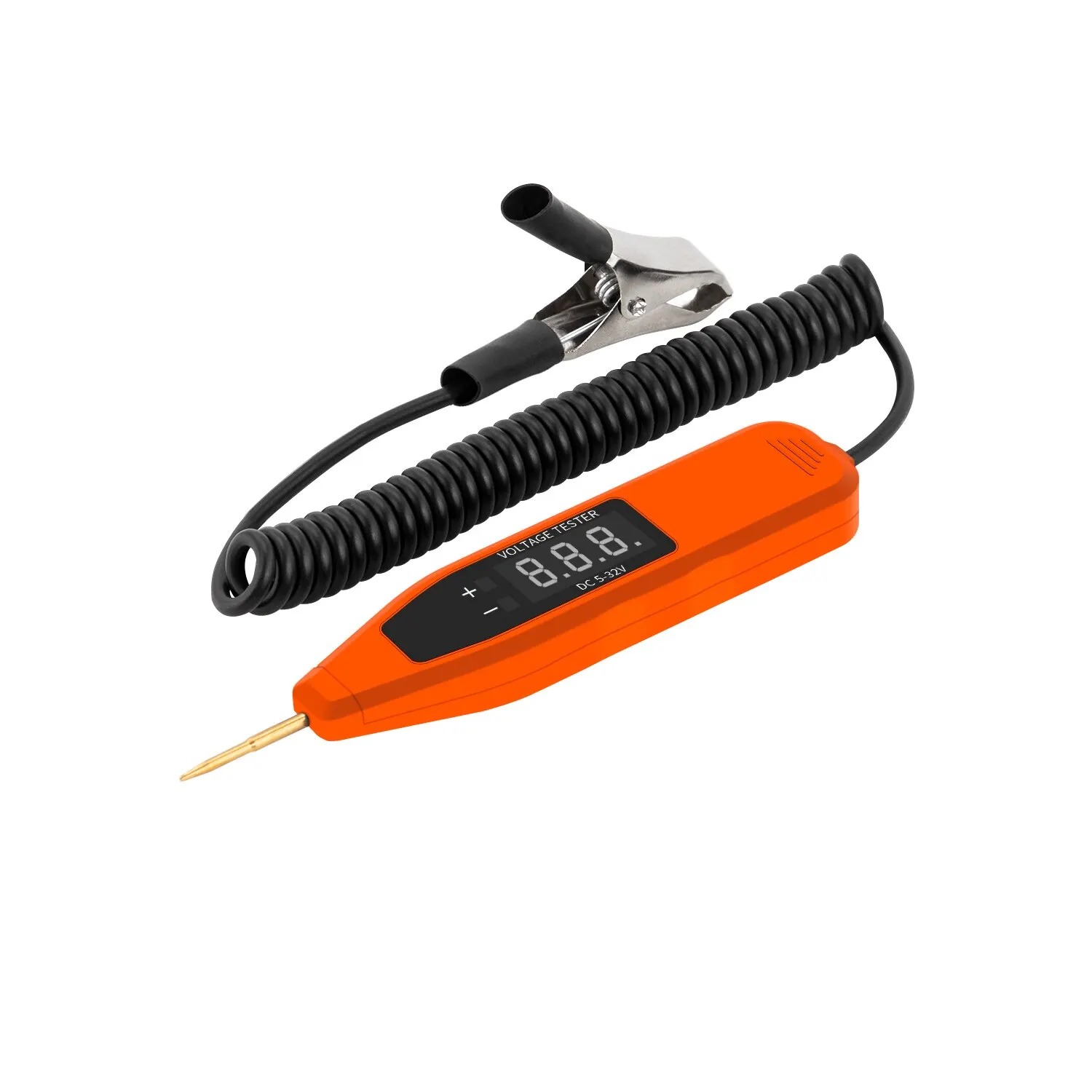

Automotive Digital Voltage Test Pen DC 5–32V
The Automotive Voltage Test Pen is a compact electrical tester designed for quickly checking voltage in cars, motorcycles, trucks and other DC-powered equipment.

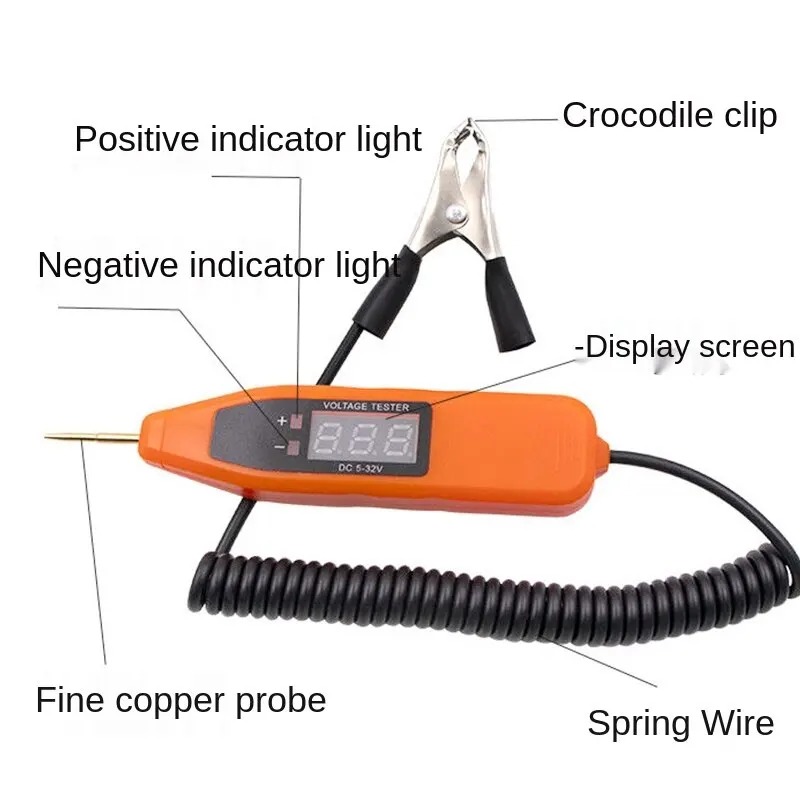

The tester features a sharp metal probe, digital voltage display and insulated alligator clip. It allows automotive electricians and technicians to identify powered wires, inspect fuses and check voltage at connectors without using a full-size multimeter for every basic test.
Main Features
• Digital voltage display
• Approximate measuring range of 5–32V DC

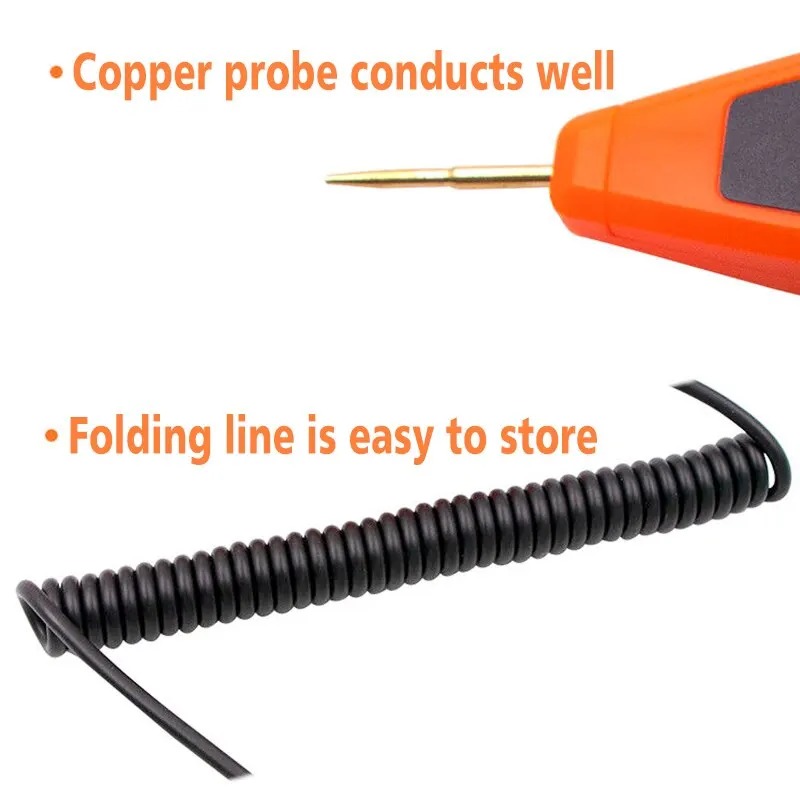

• Sharp metal probe for contacting wires and terminals
• Insulated alligator clip for ground connection
• Coiled cable provides flexible working distance

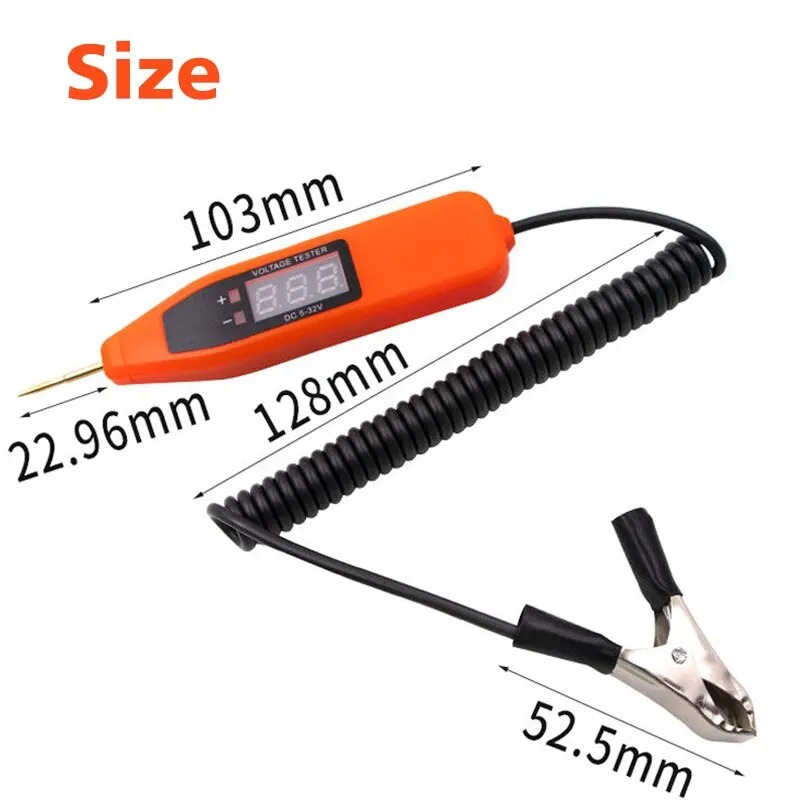

• Compact handheld design
• Simple two-wire connection
• No separate battery required
• Powered by the circuit being tested
• Suitable for automotive electrical troubleshooting
• Fast voltage indication for workshop and roadside use
Suitable Applications
The tester can be used to inspect:
• Vehicle battery voltage
• Fuse-box terminals
• Automotive fuses
• Power and accessory wires
• Ignition power circuits
• Lighting circuits
• Relays and relay sockets
• Switches and electrical connectors
• Sensor power-supply lines
• Charging-system voltage
• Motorcycle electrical systems
• 12V and 24V vehicle circuits
• Other compatible DC electrical equipment
How to Use
- Connect the alligator clip to a reliable vehicle ground or the battery negative terminal.
- Switch the vehicle ignition on if the tested circuit requires ignition power.
- Touch the metal probe to the wire, terminal or connector being tested.
- Read the voltage value shown on the digital display.
- Remove the probe and disconnect the ground clip after completing the test.
For polarity checking, connect the clip and probe carefully according to the expected circuit polarity. Never allow the probe to bridge two terminals together.
Why Use a Digital Test Pen?
A traditional test light indicates only whether voltage is present. This digital test pen also displays an approximate voltage value, helping the technician distinguish between different vehicle supply voltages and identify excessive voltage drop.
It is useful for quick checks where carrying or setting up a full multimeter may be inconvenient.
Important Limitations
• This tester is intended mainly for DC automotive circuits.
• It should not be presented or used as a household AC voltage tester.
• It does not replace a professional multimeter for precision measurements.
• It does not directly measure electrical current in amperes.
• It does not provide resistance or continuity measurements unless specifically stated by the manufacturer.
• It should not be used on high-voltage hybrid or electric vehicle systems.
• The displayed value is intended for basic troubleshooting rather than laboratory-level measurement.
Safety Instructions
• Confirm that the tested voltage is within the stated 5–32V DC range.
• Never use the tester on mains electricity or high-voltage circuits.
• Keep the metal probe away from adjacent terminals to prevent short circuits.
• Do not pierce sensitive wiring unless an approved back-probing method is unavailable.
• Seal any pierced wire insulation properly after testing.
• Do not use the tester if the cable, probe or insulation is damaged.
• Keep hands away from hot, rotating or moving engine components.
• Do not test airbag, hybrid or electric-vehicle high-voltage circuits without the correct equipment and training.
• When checking electronic control circuits, consult the vehicle wiring diagram before applying the probe.
Package Includes
• 1 × Automotive Digital Voltage Test Pen
• 1 × Integrated Coiled Cable with Alligator Clip
