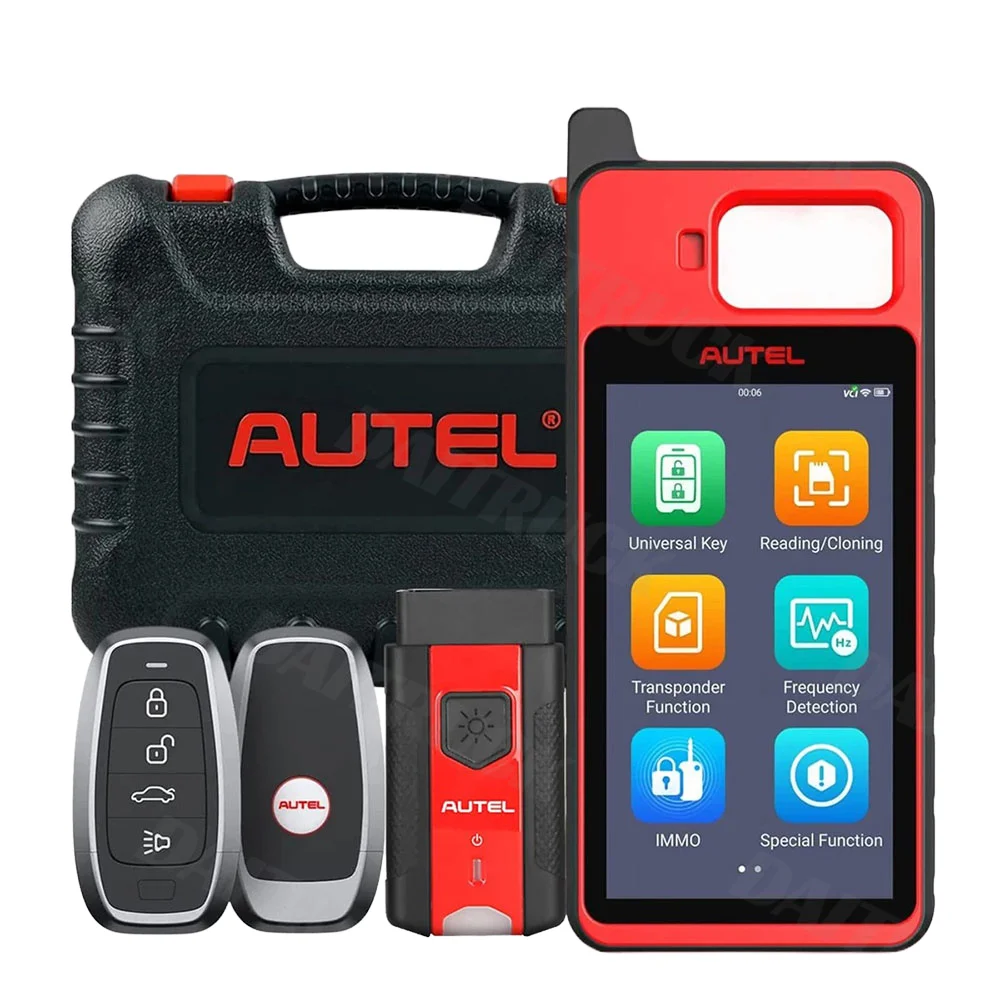

Autel MaxiIM KM100X IMMO Car Key Programmer
The Autel KM100X Key Programmer is a compact professional immobilizer and universal-key programming tool designed for automotive locksmiths, technicians and repair workshops.
It combines a 5.5-inch Android touchscreen tablet, integrated transponder functions and the wireless MaxiVCI V200 vehicle interface. The device can generate supported Autel IKEY universal smart keys, perform selected OBD key-learning procedures and process compatible transponder chips.
Its guided software provides vehicle selection, step-by-step instructions and supported immobilizer functions according to the selected model.

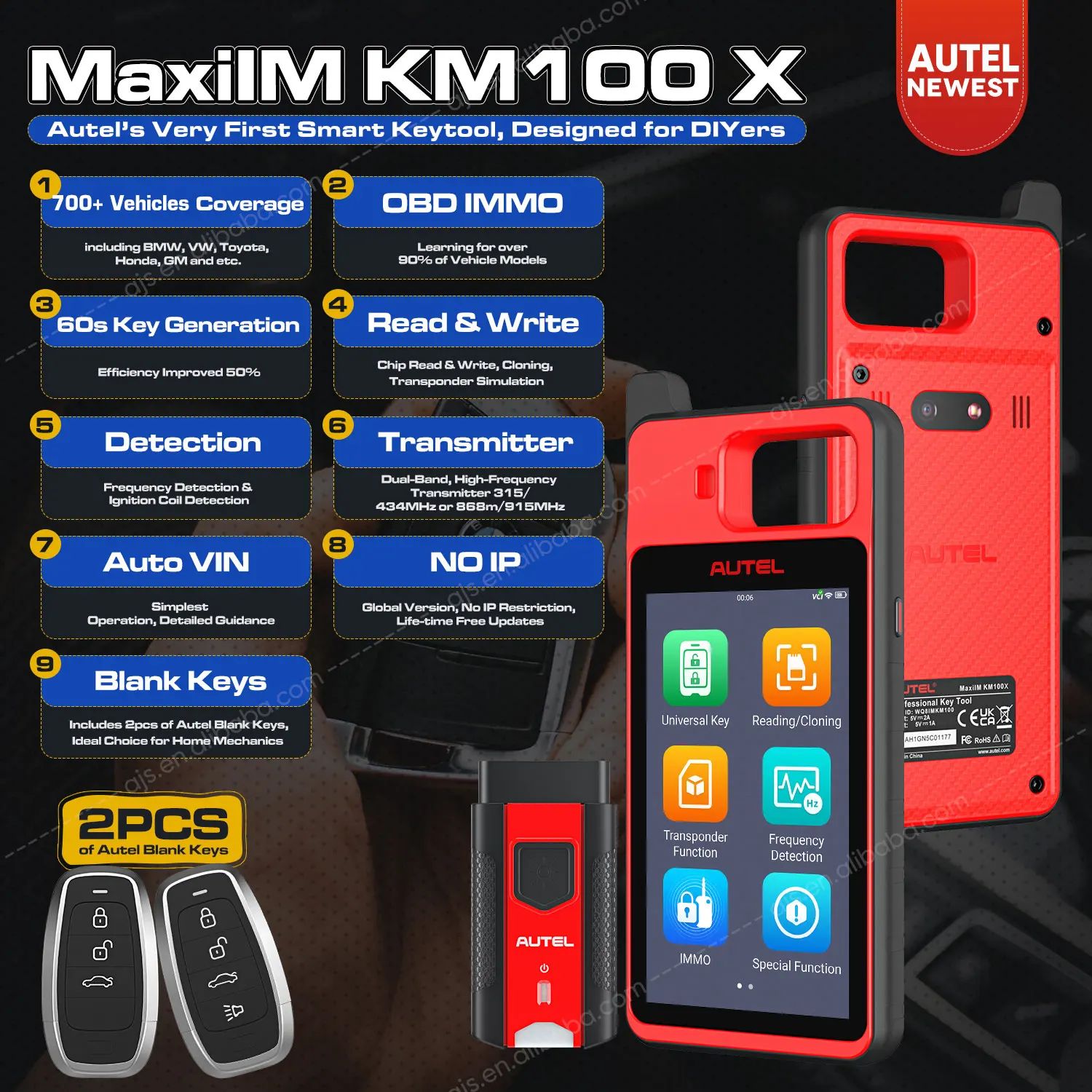

Main Features
• Generates compatible Autel IKEY universal smart keys
• Supports more than 700 vehicle applications for IKEY generation
• Key generation can be completed in approximately one minute
• Performs supported IMMO key-learning operations through OBD
• Reads and writes compatible transponder chips
• Supports selected transponder cloning functions
• Allows supported chip-data editing
• Detects key and remote-control frequencies
• Reads supported key information
• Includes guided on-screen operating instructions

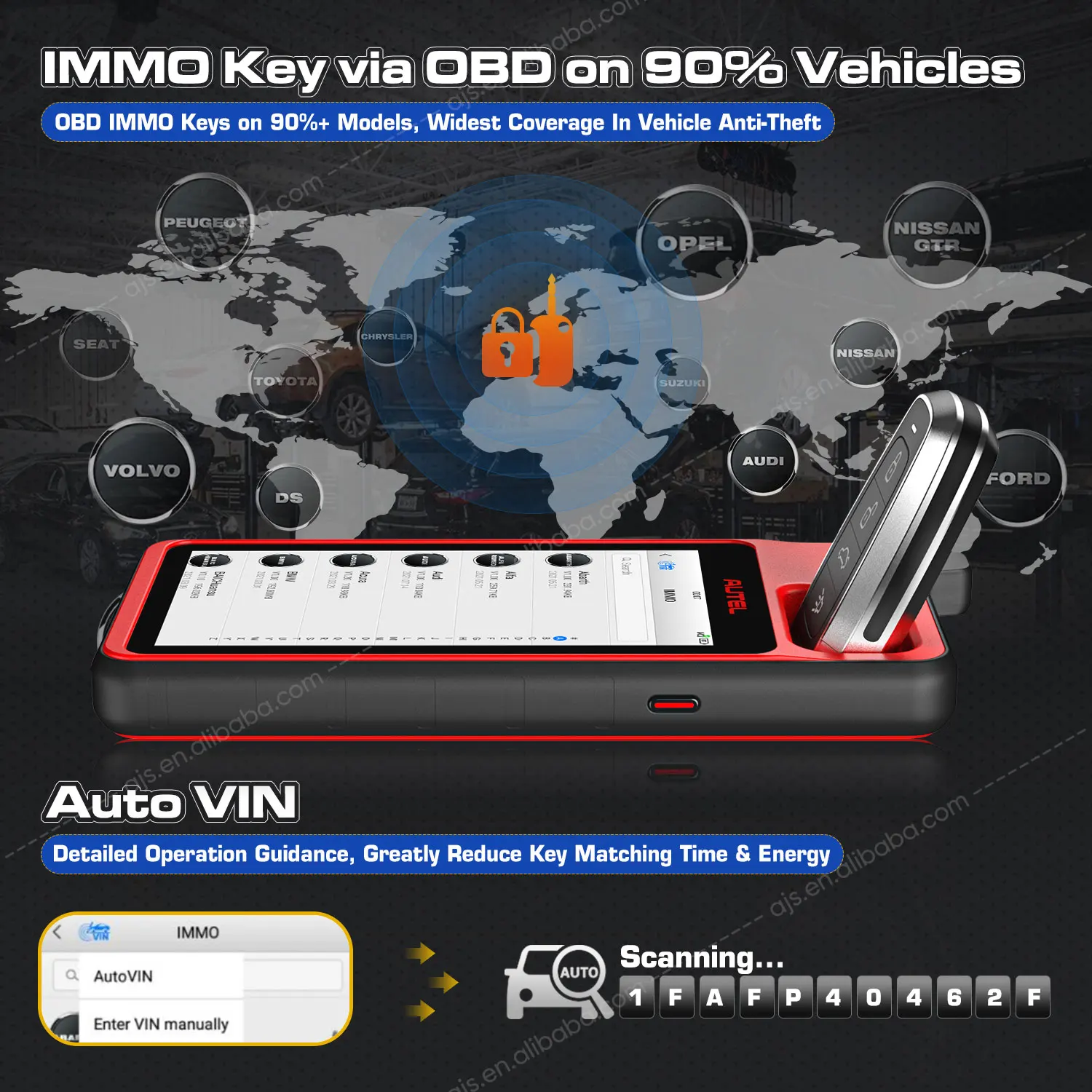

• AutoVIN identification on supported vehicles
• Wireless communication through MaxiVCI V200
• Wi-Fi connectivity for registration and updates
• Compact rechargeable Android touchscreen tablet
• Online vehicle-coverage and software updates

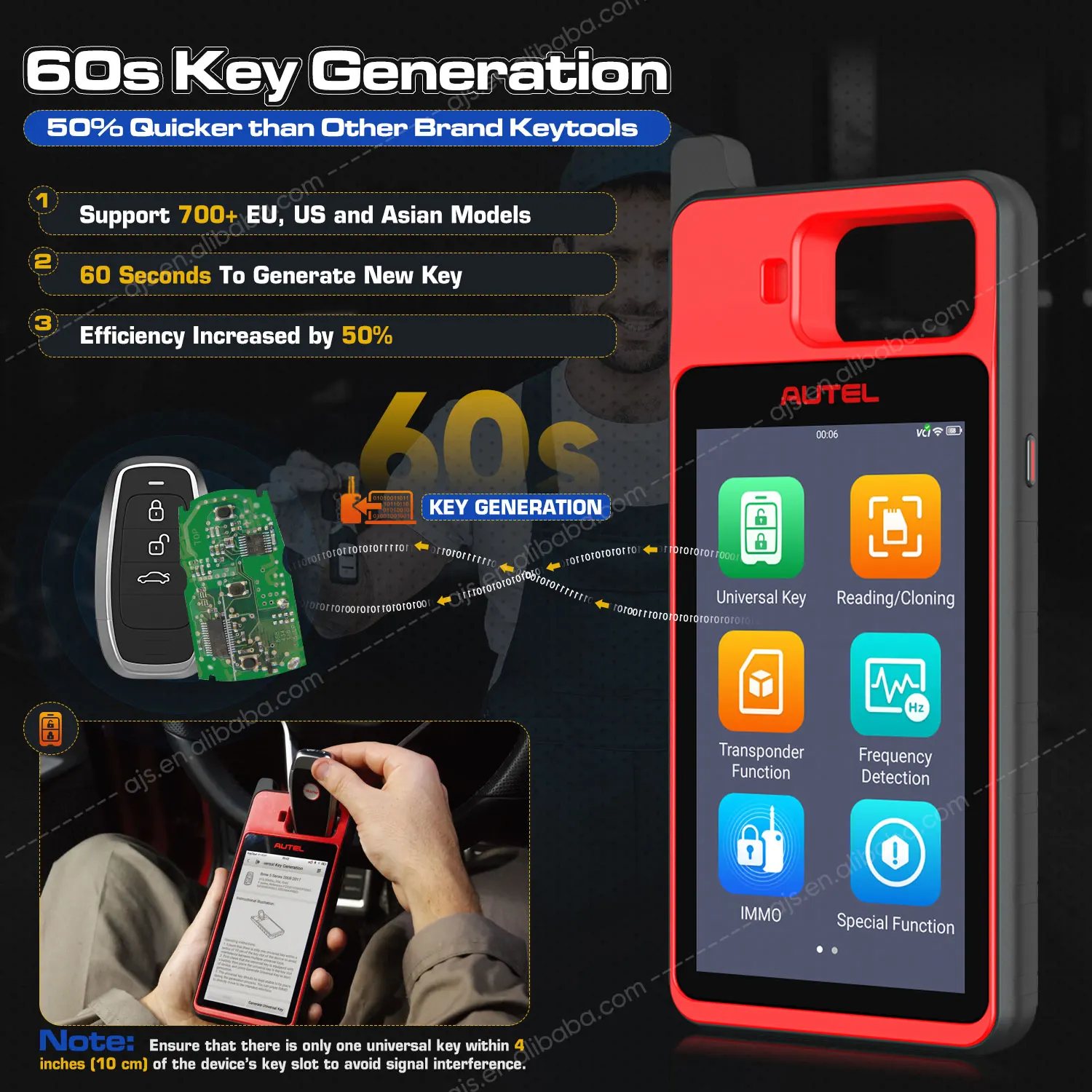

Autel IKEY Generation
The KM100X can generate compatible Autel IKEY universal smart keys for supported vehicles.
The user selects the required vehicle information and key type, places the compatible Autel IKEY in the device’s programming area and follows the on-screen instructions.
Supported key options depend on:
• Vehicle manufacturer and model
• Production year
• Key frequency
• Button configuration
• Regional version
• Autel IKEY model
• Current KM100X software coverage
Autel IKEY universal keys are required for the universal-key generation function. Other universal-key brands may not be supported.
Supported IMMO Functions
Depending on vehicle coverage, available functions may include:
• Add a new key
• Key learning
• Remote-control learning
• Smart-key learning
• Erase lost keys
• All-keys-lost procedures
• Key-number checking
• Immobilizer status checking
• Read supported immobilizer information
• Guided immobilizer operations
• Generate a compatible Autel universal key
The availability of each operation depends on the exact vehicle, year, immobilizer generation and installed control modules.
Transponder Functions
The integrated transponder tool supports selected functions such as:
• Transponder identification
• Chip reading
• Chip writing
• Transponder cloning
• Chip information display
• Data editing for supported chips
• Password calculation for selected transponders
• Frequency detection
• Ignition-coil signal detection
Not every transponder can be cloned or rewritten. Compatibility must be checked using the device’s current transponder menu.
Frequency Detection
KM100X can detect the frequency of supported vehicle keys and remote controls. This helps technicians confirm key transmission and select an appropriate replacement key.
Supported frequencies and detection functions vary according to the key type and regional specifications.
Vehicle Coverage
Autel KM100X provides immobilizer and key-programming coverage for numerous vehicle manufacturers, including selected models from:
• BMW
• Volkswagen
• Audi
• Škoda
• SEAT
• Toyota
• Lexus
• Honda
• Acura
• Ford
• General Motors
• Chevrolet
• Nissan
• Infiniti
• Hyundai
• Kia
• Mitsubishi
• Mazda
• Renault
• Peugeot
• Citroën
• Fiat
• Chrysler
• Jeep
• Dodge
• Additional supported manufacturers
Coverage differs by vehicle, production year, region and immobilizer system. Always verify the exact vehicle and required function before purchasing.
Hardware Specifications
• Display: 5.5-inch touchscreen
• Display resolution: 1280 × 720
• Operating system: Android 9.0
• Processor: Rockchip PX30, quad-core ARM Cortex-A35 1.5GHz
• Memory: 2GB RAM
• Storage: 64GB internal storage
• Camera: 8 megapixels
• Wireless connections: Wi-Fi and Bluetooth 5.0
• USB connection: USB Type-C
• Battery: 4950mAh rechargeable lithium-polymer
• Vehicle interface: Autel MaxiVCI V200
• Input power: 5V/2A
• Built-in microphone and speaker
• Ambient-light sensor
• Approximate weight: 352.7g
Important Compatibility Information
KM100X is primarily an immobilizer and key-programming tool. It should not be advertised as a complete all-system diagnostic scanner.
Functions depend on the device region, software version, vehicle coverage and security requirements. Some vehicles may require:
• A valid PIN or security code
• An authorized online account
• Manufacturer-server access
• Security-gateway authorization
• An additional adapter or cable
• EEPROM-data reading with another programmer
• A higher-level Autel IMMO device
Always check the current Autel coverage list using the exact VIN, model and required function before promising compatibility.
Online Functions and Updates
Internet access is required for product registration, software downloads, coverage updates and selected online functions.
Update availability, subscription conditions and server-based functions may vary by device region and Autel policy. Do not guarantee lifetime updates unless this is explicitly confirmed for the supplied device and sales region.
Professional and Legal Use
The Autel KM100X must only be used on vehicles owned by the operator or with documented authorization from the lawful vehicle owner.
Before performing an immobilizer operation:
• Verify vehicle ownership and customer identification
• Maintain a stable vehicle-battery voltage
• Follow every instruction displayed by the device
• Do not disconnect the VCI during key learning
• Keep at least one working key away when instructed
• Confirm the correct key frequency and button layout
• Check whether all existing keys must be present
• Understand that erased keys may need to be relearned
Loss of power, an incorrect key type or an interrupted procedure may prevent the vehicle from starting.

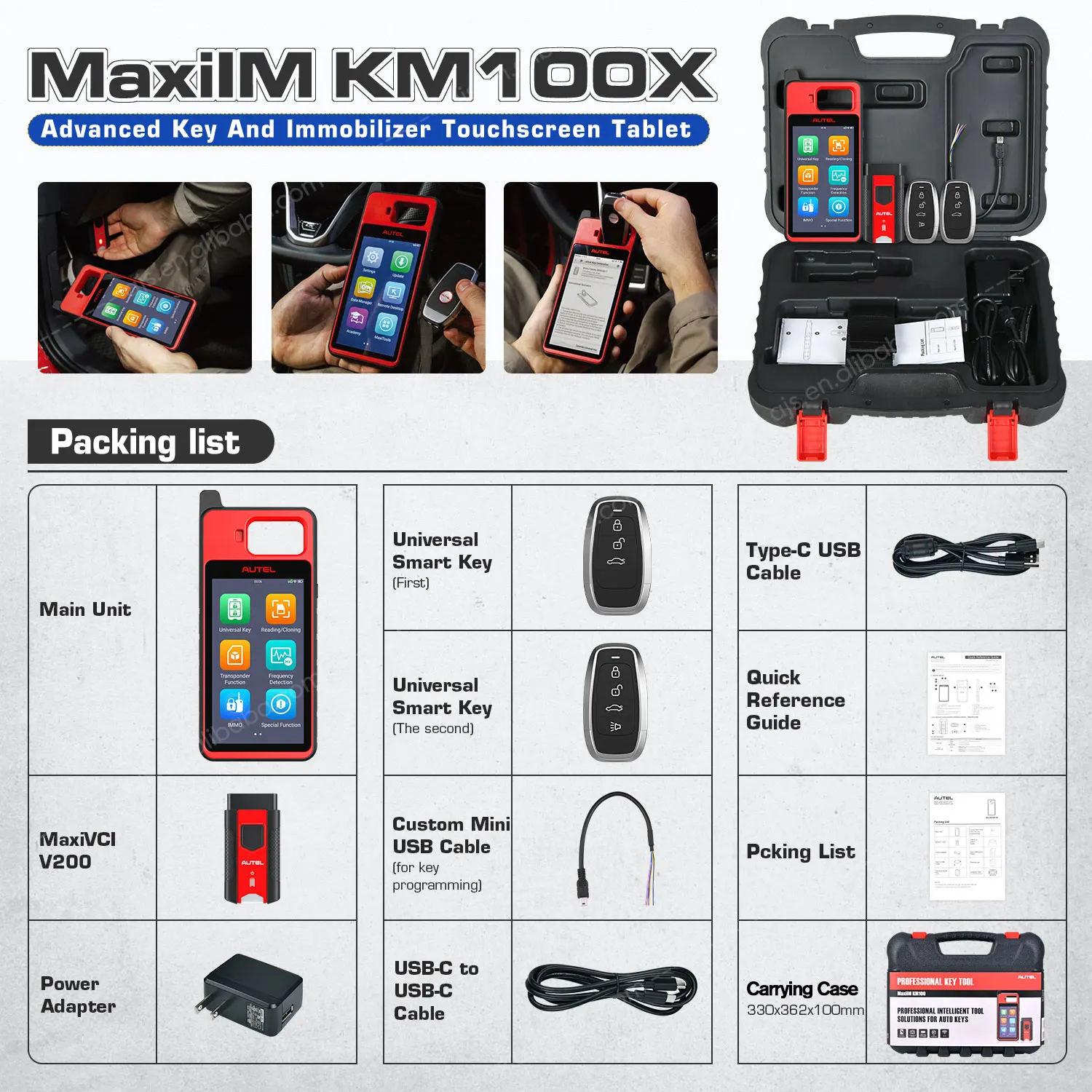

Package Includes
• 1 × Autel MaxiIM KM100X tablet
• 1 × Autel MaxiVCI V200
• 2 × Autel IKEY universal smart keys
• 1 × USB Type-C cable
• 1 × Power adapter
• 1 × Carrying case
• 1 × Quick-reference guide
Package contents may vary by region or supplier. Confirm the included IKEY models and accessories from the product images before ordering.
